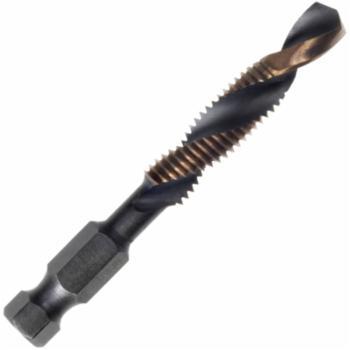

CHAMPION DT22HEX-5/16-18-IPAC 5/16-18 COMBINATION DRILL & TAP 1/4^ HE

DT22HEX-5/16-18-IPAC

Champion Cutting Tools

Quick Overview

Type : Drill & Tap Combo Sets
Tap Length : 15/16"
Brand : Champion
Manufacturer Part# : DT22HEX-5/16-18-IPAC
Surface Treatment : Black and Gold
Packaged Weight : 0.1
Flute Type : Spiral
Shank Style : 1/4" Hex Shank
Tool Overall Length : 3-1/4"
Package Quantity : 1
Point Style : 135 Degree Split Point
COO : Taiwan
Packaged Height : 1
Tool Weight : 0.1
Cutting Diameter : 5/16"
Packaged Length : 9-1/4
Packaged Width : 2
Drill Length : 1/2"
Tool Material : High Speed Steel
Drill Style : Drill and Tap Combo
Manufacturer : Champion

Interested in this item or want more information?

Hours: 6am - 5pm

Phone: 800-613-3873

Email: info@aaatool.net

Can't find what you want? Give us a call and we can help you find it.

Details

Increase Productivity by drilling and tapping in a single operation Impact Ready! Hex Shank for use in impact drivers and electric drills Drill accurate due to 135 Degree Split Point. Tap accurate due to tapered neck design. Black and Gold surface treated high speed steel increases tool life and holds lubricant for smoother drilling Ideal for drilling aluminum, steel, stainless steel, bronze, brass, cast iron, and zinc

Additional Information

Manufacturer: Champion Cutting Tools
