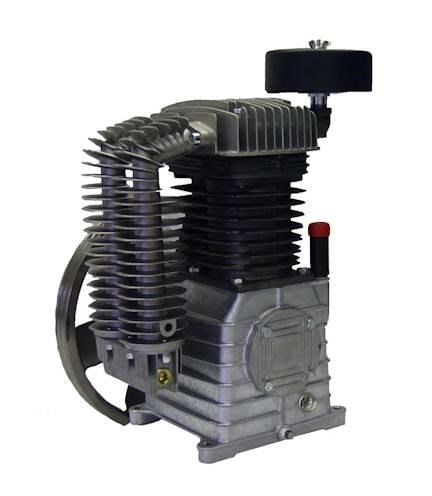

Two Stage Belt Drive Pumps for Repair or OEM Applications (5 - 7.5 HP)

PMP22K30CH

Rolair

Quick Overview

Standard Equipment

15.16" Aluminum Flywheel

Specifications

HORSE POWER	5 - 7.5 HP
RPM	800-1200
CFM DISPLACED	20.52 - 30.78
CFM DELIVERED	16.01 - 23.63 @ 175 PSI
LUBRICATION TYPE	Splash Lubrication
PUMP OIL CAPACITY	47 oz.
BORE LOW PRESSURE	4.13
BORE HIGH PRESSURE	2.05
STROKE	3.31
FLYWHEEL DIAMETER	15.16"
NUMBER OF CYLINDERS	2
V-BELTS	2-A
SHIPPING WEIGHT	83.8 lb.

Interested in this item or want more information?

Hours: 6am - 5pm

Phone: 800-613-3873

Email: info@aaatool.net

Can't find what you want? Give us a call and we can help you find it.

Details

About the Pump

Two-Stage, Cast-Iron Cylinders, Aluminum Head and Crankcase for Faster Heat Dissipation, Ball Bearings, Splash Lubricated, Bearing Inserts on Connecting Rods, Swedish Lammelar Reed Valves, Oil Sight Gauge, Low RP

Additional Information

Manufacturer: Rolair

For More Information on the Two Stage Belt Drive Pumps for Repair or OEM Applications (5 - 7.5 HP), [Click Here] to Link to Manufacturer Web Site
