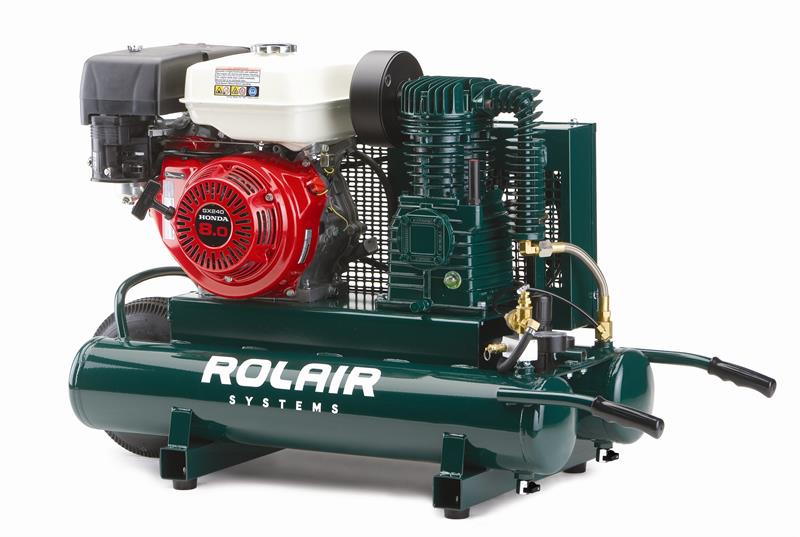

270 cc (9 HP) Honda Gas Portable Belt Drive Air Compressor

1040HK18

Rolair

Quick Overview

Optional Equipment: Filter-Regulator-Lubricator Sets, 20 Gallon Tank Available, Electric Start

Standard Equipment

Pressure Gauge 0-200 in 5 lb. Graduations

Specifications

HORSE POWER	270 cc (9 HP)
CFM DISPLACED	18.3 CFM
CFM DELIVERED	14.3 CFM @ 90 PSI
OVERLOAD PROTECTION	No
LUBRICATION TYPE	Splash Lubrication
PUMP OIL CAPACITY	34 oz.
REED VALVE SYSTEM	Yes (Standard)
NUMBER OF CYLINDERS	2
TANK CAPACITY	9 Gallons
L x W x H	46"x19"x29"
DECIBEL RATING	Unavailable
COUNTRY OF ORIGIN	Compressor Origin.pdf
SHIPPING WEIGHT	220 lb.

Interested in this item or want more information?

Hours: 6am - 5pm

Phone: 800-613-3873

Email: info@aaatool.net

Can't find what you want? Give us a call and we can help you find it.

Details

About the Pump

Heavy-Duty, Single Stage, Cast-Iron Twin Cylinders, Ball Bearings, Splash Lubricated, Cast-Iron Valve Plates with Swedish Lamellar Reed Valves, Aluminum Alloy Connecting Rods with Automotive-Style Inserts, Multi-

Additional Information

Manufacturer: Rolair

For More Information on the 270 cc (9 HP) Honda Gas Portable Belt Drive Air Compressor, [Click Here] to Link to Manufacturer Web Site
