SKUInfo/Size
3900-4649 Chuck Size:4"; A:.47; B:4.5; C:1.34; D:.47; E:1.10; F:.35; G:.51
3900-4650 Chuck Size:5"; A:0.47; B:5.5; C:2.36; D:0.47; E:1.1; F:0.35; G:0.51
3900-4651 Chuck Size:6"; A:0.47; B:6.6; C:3.15; D:0.47; E:1.26; F:0.35; G:0.65
3900-4654 Chuck Size:8"; A:0.47; B:8.6; C:4.53; D:0.59; E:1.42; F:0.35; G:0.73
3900-4656 Chuck Size:10"; A:0.47; B:10.2; C:5.91; D:0.67; E:1.57; F:0.35; G:0.73
3900-4658 Chuck Size:12"; A:0.59; B:12.4; C:7.4; D:0.83; E:1.97; F:0.35; G:0.96
3900-4660 Chuck Size:15"; A:0.79; B:15; C:9.06; D:0.91; E:2.05; F:0.63; G:1.22

Quick Overview

    Interested in this item or want more information?

    Hours:

    Phone: 800-613-3873

    Email: info@aaatool.net

    Can't find what you want? Give us a call and we can help you find it.

    Details

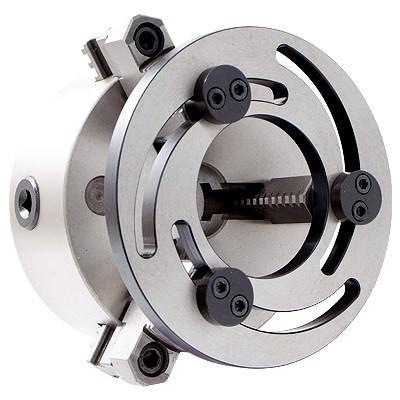

  • Since no discs or bungs are used to clamp jaws, through boring of jaws is possible.

  • Attaches to front of jaws without tools, compensating for "jaw lift".

  • Suitable for CNC lathe.

  • Ideal for machining soft jaws.

    • Additional Information

    Manufacturer: ABS Import Tools
    For More Information on the Jaw Boring Rings, [Click Here] to Link to Manufacturer Web Site
