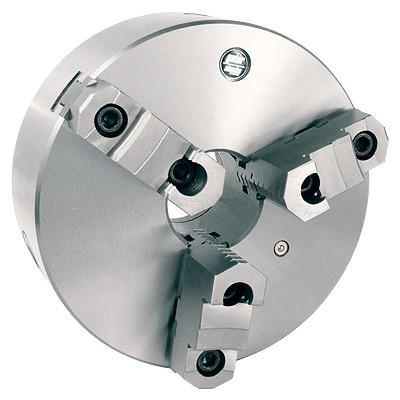

Pro-Series 3 Jaw D1, Direct Mount Self Centering Scroll Chucks

ABS Import Tools

SKUInfo/Size
3900-8005 Chuck Dia:5"; To Fit Spindle:01-4; Max RPM:3200; Studs B.C.:3.252; Studs Included:3; Dia of Stud:5/8; Dia of Center Hole;1.260; D1:2.501; H:4.33; H1:2.76; h:0.512; Z-d:M10x1; G.W.:11
3900-8008 Chuck Dia:6"; To Fit Spindle:01-3; Max RPM:3000; Studs B.C.:2.780; Studs Included:3; Dia of Stud:9/16; Dia of Center Hole;1.654; D1:2.125; H:4.90; H1:3.21; h:0.512; Z-d:M10x1; G.W.:20
3900-8009 Chuck Dia:6"; To Fit Spindle:01-4; Max RPM:3000; Studs B.C.:3.252; Studs Included:3; Dia of Stud:5/8; Dia of Center Hole;1.654; D1:2.501; H:4.90; H1:3.21; h:0.512; Z-d:M10x1; G.W.:20
3900-8013 Chuck Dia:8"; To Fit Spindle:01-3; Max RPM:2500; Studs B.C.:2.780; Studs Included:3; Dia of Stud:9/16; Dia of Center Hole;2.028; D1:2.125; H:5.35; H1:3.58; h:0.512; Z-d:M10x1; G.W.:42
3900-8014 Chuck Dia:8"; To Fit Spindle:01-4; Max RPM:2500; Studs B.C.:3.252; Studs Included:3; Dia of Stud:5/8; Dia of Center Hole;2.165; D1:2.501; H:5.35; H1:3.58; h:0.512; Z-d:M10x1; G.W.:42
3900-8015 Chuck Dia:8"; To Fit Spindle:01-5; Max RPM:2500; Studs B.C.:4.126; Studs Included:6; Dia of Stud:3/4; Dia of Center Hole;2.165; D1:3.251; H:5.35; H1:3.58; h:0.563; Z-d:M12x1; G.W.:42
3900-8016 Chuck Dia:8"; To Fit Spindle:01-6; Max RPM:2500; Studs B.C.:5.252; Studs Included:6; Dia of Stud:7/8; Dia of Center Hole;2.165; D1:4.188; H:5.35; H1:3.58; h:0.563; Z-d:M16x1.5; G.W.:42
3900-8020 Chuck Dia:10"; To Fit Spindle:01-5; Max RPM:2000; Studs B.C.:4.126; Studs Included:6; Dia of Stud:3/4; Dia of Center Hole;2.992; D1:3.251; H:6.16; H1:4.08; h:0.563; Z-d:M12x1; G.W.:71
3900-8021 Chuck Dia:10"; To Fit Spindle:01-6; Max RPM:2000; Studs B.C.:5.252; Studs Included:6; Dia of Stud:7/8; Dia of Center Hole;2.992; D1:4.188; H:6.16; H1:4.08; h:0.630; Z-d:M16x1.5; G.W.:71
3900-8022 Chuck Dia:10"; To Fit Spindle:01-8; Max RPM:2000; Studs B.C.:6.748; Studs Included:6; Dia of Stud:1; Dia of Center Hole;2.992; D1:5.501; H:6.16; H1:4.08; h:0.709; Z-d:M20x1.5; G.W.:71
3900-8024 Chuck Dia:12"; To Fit Spindle:01-6; Max RPM:1500; Studs B.C.:5.252; Studs Included:6; Dia of Stud:7/8; Dia of Center Hole;4.055; D1:4.188; H:6.88; H1:4.64; h:0.630; Z-d:M16x1.5; G.W.:112
3900-8025 Chuck Dia:12"; To Fit Spindle:01-8; Max RPM:1500; Studs B.C.:6.748; Studs Included:6; Dia of Stud:1; Dia of Center Hole;5.354; D1:5.501; H:6.88; H1:4.64; h:0.709; Z-d:M20x1.5; G.W.:112
3900-8028 Chuck Dia:15"; To Fit Spindle:01-8; Max RPM:1000; Studs B.C.:6.748; Studs Included:6; Dia of Stud:1; Dia of Center Hole;5.354; D1:5.501; H:7.70; H1:5.06; h:0.709; Z-d:M20x1.5; G.W.:223
3900-8030 Chuck Dia:15"; To Fit Spindle:01-11; Max RPM:1000; Studs B.C.:9.252; Studs Included:6; Dia of Stud:1-3/16; Dia of Center Hole;5.906; D1:7.751; H:7.70; H1:5.06; h:0.787; Z-d:M22x1.5; G.W.:223

Quick Overview

    Interested in this item or want more information?

    Hours:

    Phone: 800-613-3873

    Email: info@aaatool.net

    Can't find what you want? Give us a call and we can help you find it.

    Details


  • Semi-steel body.

  • Direct mount self-centering scroll chucks.

  • American standard two piece top reversible tongue & groove Jaws.

  • All guide ways & bearing surfaces are precisely ground.

  • Pinions are ha

    • Additional Information

    Manufacturer: ABS Import Tools
    For More Information on the Pro-Series 3 Jaw D1, Direct Mount Self Centering Scroll Chucks, [Click Here] to Link to Manufacturer Web Site
