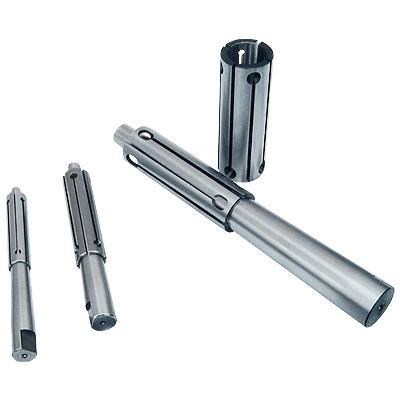

Expanding Mandrels and Sets

ABS Import Tools

SKUInfo/Size
3902-3050 Size Range:1/2-9/16"; Length of Arbor:5"; Length of Sleeve:2-1/2"; Sleeves Furnished:1
3902-3052 Size Range:9/16-21/32"; Length of Arbor:6"; Length of Sleeve:2-3/4"; Sleeves Furnished:1
3902-3054 Size Range:21/32-3/4"; Length of Arbor:7"; Length of Sleeve:2-3/4"; Sleeves Furnished:1
3902-3056 Size Range:3/4-7/8"; Length of Arbor:7"; Length of Sleeve:3-1/4"; Sleeves Furnished:1
3902-3058 Size Range:7/8-1"; Length of Arbor:7"; Length of Sleeve:3-1/4"; Sleeves Furnished:1
3902-3060 Size Range:1-1-1/4"; Length of Arbor:9"; Length of Sleeve:4"; Sleeves Furnished:2
3902-3062 Size Range:1-1/4-1-1/2"; Length of Arbor:9"; Length of Sleeve:4"; Sleeves Furnished:2
3902-3064 Size Range:1-1/2-2"; Length of Arbor:11-1/2"; Length of Sleeve:5"; Sleeves Furnished:2
3902-3070 Size Range:1/2 - 1"; No of Mandrels:5
3902-3072 Size Range:1 - 2"; No of Mandrels:3
3902-3074 Size Range:1/2 - 2"; No of Mandrels:8
3902-3076 Size Range:2-2-3/4"; No of Mandrels:3
3902-3078 Size Range:2-3/4-3-3/4"; No of Mandrels:3

Quick Overview


  • Made of high grade tool steel

  • Precision ground and heat treated for maximum concentricity and holding power.

  • Center holes are ground and lapped.

  • The automatic expansion feature can be utilized on any bore (st
Interested in this item or want more information?

Hours:

Phone: 800-613-3873

Email: info@aaatool.net

Can't find what you want? Give us a call and we can help you find it.

Details

  • Arbors are tapered , sleeves are flexible and size is obtained by moving sleeve along arbor.

  • A range from 1/2" thru 2" by .0001" can be covered by a total of 8 mandrels.

    • Additional Information

    Manufacturer: ABS Import Tools
