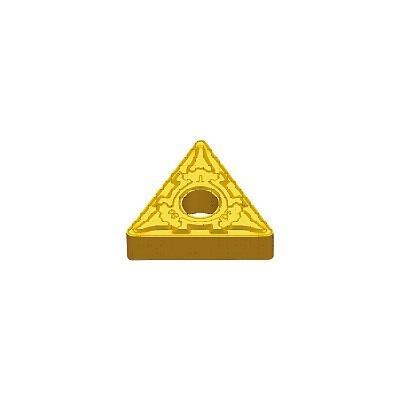

TNMG- DF Triangle- Negative Rake Carbide Inserts

ABS Import Tools

SKUInfo/Size
6001-9331 ASA Insert No:TNMG-331-DF; ISO Insert No:TNMG160404DF; IC:3/8; L:5/8; S:3/16; d:0.15; r:.0157; Grade:XAB849
6001-9332 ASA Insert No:TNMG-332-DF; ISO Insert No:TNMG160408DF; IC:3/8; L:5/8; S:3/16; d:0.15; r:.0315; Grade:XAB849
6001-9333 ASA Insert No:TNMG-333-DF; ISO Insert No:TNMG160412DF; IC:3/8; L:5/8; S:3/16; d:0.15; r:.0472; Grade:XAB849
6001-9432 ASA Insert No:TNMG-432-DF; ISO Insert No:TNMG220408; IC:1/2; L:7/8; S:3/16; d:13/64; r:.0315; Grade:XAB849
6001-9433 ASA Insert No:TNMG-433-DF; ISO Insert No:TNMG220412DF; IC:1/2; L:7/8; S:3/16; d:13/64; r:.0472; Grade:XAB849

Quick Overview


  • XAB849: Substrate with excellent wear-resistance, in combination with MT-TiCN, thick layer Al2O3TiN coating. It is an ideal grade for the finishing steel, cast steel and stainless steel under high speed and dry machining.

Interested in this item or want more information?

Hours:

Phone: 800-613-3873

Email: info@aaatool.net

Can't find what you want? Give us a call and we can help you find it.

Additional Information

Manufacturer: ABS Import Tools
For More Information on the TNMG- DF Triangle- Negative Rake Carbide Inserts, [Click Here] to Link to Manufacturer Web Site
