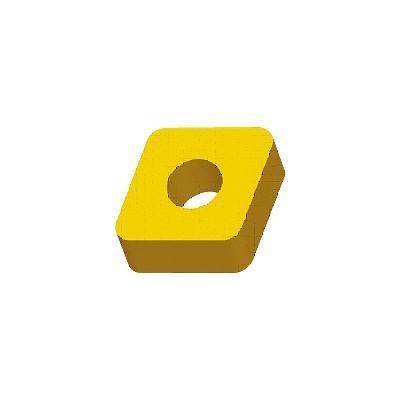

CNMA Diamond- Negative Rake Carbide Inserts

ABS Import Tools

SKUInfo/Size
6000-6431 ASA Insert No.:CNMA-431; ISO Insert No:CNMA120404; IC:1/2L:1/2S:3/16; d:13/64"; r:.0157; Grade:XAC849
6000-6432 ASA Insert No.:CNMA-432; ISO Insert No:CNMA120408; IC:1/2L:1/2S:3/16; d:13/64; r:.0315; Grade:XAC849
6000-6433 ASA Insert No.:CNMA-433; ISO Insert No:CNMA120412; IC:1/2L:1/2S:3/16; d:13/64; r:.0472; Grade:XAC849
6000-6543 ASA Insert No.:CNMA-543; ISO Insert No:CNMA160612; IC:5/8L:5/8S:1/4; d:1/4; r:.0472; Grade:XAC849
6000-6643 ASA Insert No.:CNMA-643; ISO Insert No:CNMA190612; IC:3/4L:3/4S:1/4; d:5/16; r:.0472; Grade:XAC849
6000-6644 ASA Insert No.:CNMA-644; ISO Insert No:CNMA190616; IC:3/4L:3/4S:1/4; d:5/16; r:.0630; Grade:XAC849

Quick Overview


  • XAC849: Substrate with very good wear resistance, in combination with MT-TiCN, thick layer Al2O3TiN coating. It is the first choice for medium to rough machining of cast iron and nodular cast iron under high cutting speeds.

Interested in this item or want more information?

Hours:

Phone: 800-613-3873

Email: info@aaatool.net

Can't find what you want? Give us a call and we can help you find it.

Additional Information

Manufacturer: ABS Import Tools
For More Information on the CNMA Diamond- Negative Rake Carbide Inserts, [Click Here] to Link to Manufacturer Web Site
