SCLCR Coolant Thru Indexable Boring Bars and Sets

ABS Import Tools

SKUInfo/Size
1001-0312 Dimension Style:A05H-SCLCR2; Dia. X OAL:5/16 x 4; Min Bore:0.437; Insert:CCMT-21.5; Screw:M2.5x8; Torx Wrench:T-8
1001-0375 Dimension Style:A06J-SCLCR2; Dia. X OAL:3/8 x 4-1/2; Min Bore:0.5; Insert:CCMT-21.5; Screw:M2.5x8; Torx Wrench:T-8
1001-0500 Dimension Style:A08K-SCLCR2; Dia. X OAL:1/2 x 5; Min Bore:0.625; Insert:CCMT-21.5; Screw:M2.5x8; Torx Wrench:T-8
1001-0625 Dimension Style:A10M-SCLCR2; Dia. X OAL:5/8 x 6; Min Bore:0.812; Insert:CCMT-21.5; Screw:M2.5x8; Torx Wrench:T-8

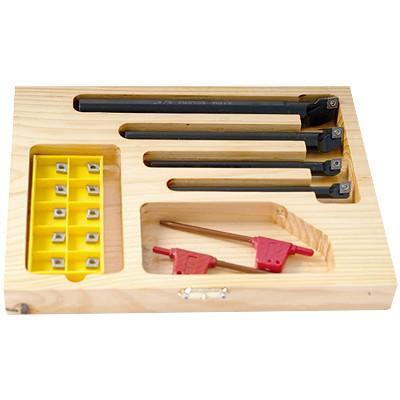

1001-0699 Coolant Thru 4 PC Set

Quick Overview


  • Utilize CCMT 80° diamond inserts.

  • 7° Relief angle.

  • Negative 5° Lead angle for boring.

  • Torx wrench included.

  • CCMT insert included.

  • Application: Profiling bars for semi-finishing and f
