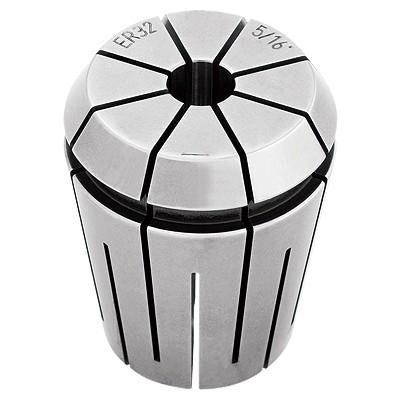

ER32 Spring Collets-Coolant Thru

ABS Import Tools

SKUInfo/Size
3900-5542 Size: 3/16; Collapse Range: .16-.2"
3900-5543 Size: 7/32; Collapse Range: .2-.236"
3900-5544 Size: 1/4; Collapse Range: .236-.275"
3900-5545 Size: 5/16; Collapse Range: .275-.316"
3900-5546 Size: 11/32; Collapse Range: .316-.354"
3900-5547 Size: 3/8; Collapse Range: .354-.393"
3900-5548 Size: 13/32; Collapse Range: .393-.433"
3900-5549 Size: 7/16; Collapse Range: .433-.472"
3900-5550 Size: 1/2; Collapse Range: .472-.511"
3900-5551 Size: 17/32; Collapse Range: .511-.551"
3900-5552 Size: 9/16; Collapse Range: .551-.590"
3900-5553 Size: 5/8; Collapse Range: .590-.629"
3900-5554 Size: 21/32; Collapse Range: .708-.748"
3900-5555 Size: 11/16; Collapse Range: .669-.708"
3900-5556 Size: 23/32; Collapse Range: .708-.748"
3900-5557 Size: 3/4; Collapse Range: .748-.787"
3900-5558 Size: 25/32; Collapse Range: .748-.787"

Quick Overview


  • Designed for use with cylindrical shank tools (no flats). Cutting tool should be inserted the full length of the collet. If these conditions are not met, coolant leakage may result.

Interested in this item or want more information?

Hours:

Phone: 800-613-3873

Email: info@aaatool.net

Can't find what you want? Give us a call and we can help you find it.

Additional Information

Manufacturer: ABS Import Tools
For More Information on the ER32 Spring Collets-Coolant Thru, [Click Here] to Link to Manufacturer Web Site
