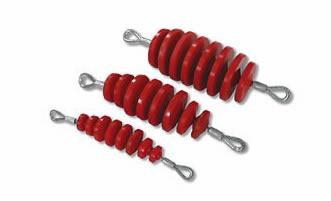

Conduit Checker – 08500 Series

Current Tools

SKU	Info/Size
08500-200	Nominal Conduit Size: 2"; Disc Diameter: 1 7/8"; Safe Working Load *: 2,300 lbs.
08500-250	Nominal Conduit Size: 2 1/2"; Disc Diameter: 2 3/16"; Safe Working Load *: 2,300 lbs.
08500-300	Nominal Conduit Size: 3"; Disc Diameter: 2 13/16"; Safe Working Load *: 2,300 lbs.
08500-350	Nominal Conduit Size: 3 1/2"; Disc Diameter: 3 1/4"; Safe Working Load *: 4,800 lbs.
08500-400	Nominal Conduit Size: 4"; Disc Diameter: 3 3/4"; Safe Working Load *: 4,800 lbs.
08500-500	Nominal Conduit Size: 5"; Disc Diameter: 4 11/16"; Safe Working Load *: 4,800 lbs.
08500-640	Nominal Conduit Size: 6"; Disc Diameter: 5 13/16"; Safe Working Load *: 4,800 lbs.

Quick Overview

Interested in this item or want more information?

Hours: 6am - 5pm

Phone: 800-613-3873

Email: info@aaatool.net

Can't find what you want? Give us a call and we can help you find it.

Details

Following initial installation of the conduit it is often found that debris or partial collapse of the conduit will impede installation of the cable. These products are designed to ensure the conduit is clear before installing the cable. The discs are ma

Additional Information

Manufacturer: Current Tools

For More Information on the Conduit Checker – 08500 Series, [Click Here] to Link to Manufacturer Web Site
