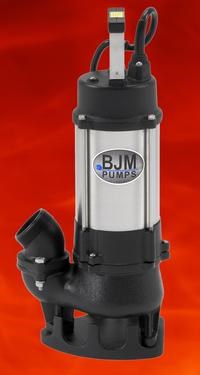

SVF Solids Handling Pumps SV1500F-230

• Max. Flow: Gpm: 171
• Max. Head: Ft: 29'
• Pump Type: Non Clog Vortex
• Discharge Size: 3" NPT-F
• Max. Submerged Depth: 65'
• Min. Submerged Depth: 14.5"
• Shipping Weight:Lbs: 104

• Motor Casing: 304SS
• Pump Volute: Cast Iron
• Lip Seals & O-Rings: Buna - N
• Rotor Shaft: 304SS
• External Hardware: 304SS
• Qty. Oil In Seal Chamber: 9.3 U.S. FL .OZ., SHELL FM 32, NSF APPROVED
• Qty. Oil In Motor Stator: OIL-FILLED W/ SHELL FM 32, NSF APPROVED

• Motor Rating: Hp: 2
• Motor Rpm: 3450
• Motor Insulation Class: R
• Motor Service Factor: 1.1
• Voltage: 230, 1ph-60 Hz
• Current F.L.A.: 14
• Motor Protection: Thermal Sensor Switches Embedded in Each Winding Phase
• Power Cord: Gage; Length: A.W.G. 14/4, 33', high temp. rated
• Maximum Liquid Temperature: 200° F
• Seal Minder: Standard

The SVF-pumps are equipped with Vortex impellers, undoubtedly the best non-clog impellers ever invented for the handling of mud, raw sewage, viscous liquids, rags, wood chips and other solids. They pass solid up to 90% of pump outlet diameter.

• Longer Power Cord – Standard 50ft. high temperature power cord on pumps.
• 304SS Motor Housing – Superior abrasion resistance will not wear out like aluminum motor housings when pumping sandy water.
• Three Seal Motor Protection - Motor is protected by double mechanical seals. Lower seal made of silicon carbide/silicon carbide and upper seal is made of carbon/ceramic. An additional lip seal has been installed above the impeller, to help prevent abrasives such as dirt, silt or sand, from entering into the seal chamber.
• More Motor Protection – Winding protection and (NEMA) Class R motor insulation with a thermal cut out switch that will allow the stator to have a winding temperature of up to 300 degrees F (150 C), superior to pumps with Class A and B insulation.
• Tough Pump Construction – Hardened cast iron stands up to rough handling and pumping sandy water unlike pumps with soft resin impellers or plastic exterior components.
