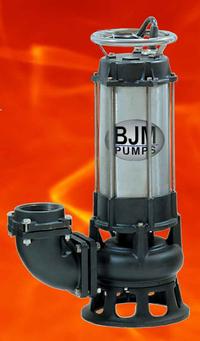

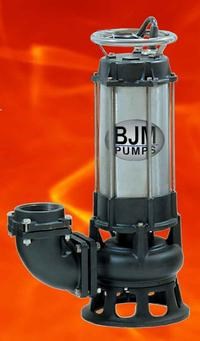

The Shredder (SKF) pumps leave solids slightly larger than if passed through a grinder pump. The shredding action is caused by using a cutting impeller with a Tungsten Carbide Tip, against a "spiral" shaped diffuser plate.
Complete with Control Box:
All Single Phase Fahrenheit Pumps are supplied with NEMA 4X control box - including start components
- Name 4X Enclosure with Hinged Door and lockable hasp
- Terminal Blocks and Ground lugs as required
- Seal Fail Indicator light
- Seal Minder Relay
- IEC Rated Motor Contactor
- On / Off toggle switch
- Back Panel and Inner Door
- Incoming Power Block
- U.L 508 listed
- Control and Alarm Circuit Fuses
- Pump Start Components
- Piezo Audible Alarm
- Motor Thermal Sensor Relay
Interested in this item or want more information?
Hours:
Phone: 800-613-3873
Email: info@aaatool.net
Can't find what you want? Give us a call and we can help you find it.
Details
GENERAL DATA
Max. Flow: Gpm: 185
Max. Head: Ft: 46'
Pump Type: Non Clog Shredder
Discharge Size: 3" NPT-M
Max. Submerged Depth: 65'
Min. Submerged Depth: 14"
Shipping Weight:Lbs: 100
CONSTRUCTION/MATERIAL DATA
Motor Casing: 304SS
Pump Volute: Cast Iron
Strainer / Stand: Cast Iron
Lip Seals & O-Rings: Buna-N
Rotor Shaft: 304SS
External Hardware: 304SS
Qty. Oil In Seal Chamber: 7.8 U.S. FL. OZ., SHELL FM 32, NSF APPROVED
Qty. Oil In Motor Stator: OIL-FILLED W/ SHELL FM 32, NSF APPROVED
ELECTRICAL/MOTOR DATA
Motor Rating: Hp: 2
Motor Rpm: 3450
Motor Insulation Class: R
Motor Service Factor: 1.1
Voltage: 230, 1PH-60 Hz
Current F.L.A.: 14
Motor Protection: Thermal Sensor Switches Embedded in Each Winding Phase
Power Cord: Gage; Length: A.W.G. 14/4; 33', high temp. rated
Maximum Liquid Temperature: 200° F
Seal Minder: Standard
The Shredder (SKF) pumps leave solids slightly larger than if passed through a grinder pump. The shredding action is caused by using a cutting impeller with a Tungsten Carbide Tip, against a "spiral" shaped diffuser plate.
- Longer Power Cord – Standard 33ft. power.
- 304SS Motor Housing – Superior abrasion resistance will not wear out like aluminum motor housings when pumping sandy water.
- Three Seal Motor Protection - Motor is protected by double mechanical seals. Lower seal made of silicon carbide/silicon carbide and upper seal is made of carbon/ceramic. An additional lip seal has been installed above the impeller, to help prevent abrasives such as dirt, silt or sand, from entering into the seal chamber.
- More Motor Protection – Winding protection and (NEMA) Class R motor insulation with a thermal cut out switch that will allow the stator to have a winding temperature of up to 300 degrees F (150 C), superior to pumps with Class A and B insulation.
- Tough Pump Construction – Hardened cast iron stands up to rough handling and pumping sandy water unlike pumps with soft resin impellers or plastic exterior components.
Additional Information
Manufacturer: BJM Pumps, LLC
For More Information on the SKF Shredder Pumps SK1500CF230,
