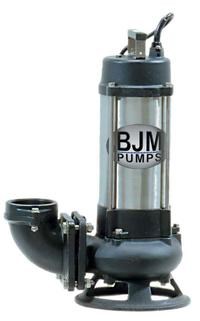

Electric Submersible Pumps with Single Vane Impellers for Municipal, Industrial and Agricultural Waste-Water
Single Vane Impeller Pump for Municipal, Industrial and Agricultural Wastewater
Recommended accessories
Piggy Back type float switch 230 w/o plug:
- 30’ Cable, 230 Volt = BJM Part# AFSB30-3
- 50’ Cable, 230 Volt = BJM Part# AFSB50-3
Built-In Switch (Permanently attached to pump):
- 33’ Cable 230 Volt = BJM Part# M02781
- 50’ Cable, 230 Volt = BJM Part# M02782
Manual Starter Box:
- Manual On/Off starter box for S1500C-230 = BJM Part# MSB1U140
Auto Starter Box:
- Auto On/Off starter box for S1500C-230 = BJM Part# MSB1U140-F
Simplex Control Panel - (3 mechanical float switches):
- Single Phase Control Panel for S1500C-230 = BJM Part# AP11BH
Duplex Control Panel - (4 mechanical float switches):
- Single Phase Control Panel for S1500C-230 = BJM Part# AP12BH
Interested in this item or want more information?
Hours:
Phone: 800-613-3873
Email: info@aaatool.net
Can't find what you want? Give us a call and we can help you find it.
Details
GENERAL DATA
Max. Flow: Gpm: 210
Max. Head: Ft: 52'
Pump Type: Open Vane Non Clog
Discharge Size: 3" NPT-M
Max. Submerged Depth: 65'
Min. Submerged Depth: 14"
Shipping Weight:Lbs: 100
CONSTRUCTION/MATERIAL DATA
Motor Casing: 304 SS
Pump Volute: Cast Iron
Strainer / Stand: Cast Iron
Lip Seals & O-Rings: Buna-N
Rotor Shaft: 304 SS
External Hardware: 304 SS
Qty. Oil In Seal Chamber: 7.8 U.S. FL. OZ.
ELECTRICAL/MOTOR DATA
Motor Rating: Hp: 2
Motor Rpm: 3450
Motor Insulation Class: F
Motor Service Factor: 1.1
Voltage: 230, 1PH-60 Hz
Current F.L.A.: 14
Motor Protection: Thermal & Amp Overload
Power Cord: Gage; Length: A.W.G. 14/3; 33', STOW
Maximum Liquid Temperature: 104° F
Seal Minder: Standard/Included
Electric Submersible Pumps with Single Vane Impellers for Municipal, Industrial and Agricultural Waste-Water
The S-pumps have non-clog, single vane impellers designed for high volume and lift performance.
- Longer Power Cord – Standard 33ft. power cord.
- 304SS Motor Housing – Superior abrasion resistance will not wear out like aluminum motor housings when pumping sandy water.
- Three Seal Motor Protection - Motor is protected by double mechanical seals. Lower seal made of silicon carbide/silicon carbide and upper seal is made of carbon/ceramic. An additional lip seal has been installed above the impeller, to help prevent abrasives such as dirt, silt or sand, from entering into the seal chamber.
- More Motor Protection – Winding protection and (NEMA) Class F motor insulation allows motor temperature to raise to 230°F, superior to pumps with Class A and B insulation. Automatic switch turns pump motor off if temperature and/or amp draw raises too high. When the motor cools the switch will automatically reset and the pump will turn back on.
- Tough Pump Construction – Hardened cast iron stands up to rough handling and pumping sandy water unlike pumps with soft resin impellers or plastic exterior components.
Additional Information
Manufacturer: BJM Pumps, LLC
For More Information on the Single and Double Vane Impeller S-Pumps S1500C-230,
[Click Here] to Link to Manufacturer Web Site
