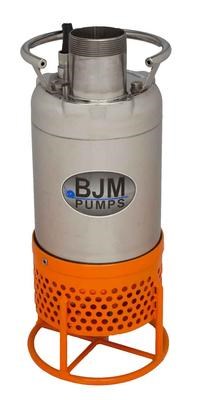

Hard Metal Submersible dewatering pumps
Designed and constructed for dewatering sand, silt, coal fines and abrasive light slurries.
Chrome Iron impeller and wear plate
Hardened ductile iron agitator and volute
Built-in agitator mixes settled solids with pump water to restore sump or basin volume
Light Weight
Recommended accessories
Piggy Back type float switch 230 w/o plug:
- 50’ Cable, 230 Volt = BJM Item # 201061
Built-In Switch (Permanently attached to pump):
- 33’ Cable 230 Volt = BJM Item # 201730
- 50’ Cable, 230 Volt = BJM Item # 201731
Manual Starter Box:
- Manual On/Off starter box for LWA2200-230 = BJM Item # 201115
Auto Starter Box:
- Auto On/Off starter box for LWA2200-230 = BJM Item # 201116
Simplex Control Panel - (3 mechanical float switches):
- Single Phase Control Panel for LWA2200-230 = BJM Item # 201067
Duplex Control Panel - (4 mechanical float switches):
- Single Phase Control Panel for LWA2200-230 = BJM Item # 201072
Interested in this item or want more information?
Hours:
Phone: 800-613-3873
Email: info@aaatool.net
Can't find what you want? Give us a call and we can help you find it.
Details
GENERAL DATA
Max. Flow: Gpm : 188
Max. Head: Ft : 72'
Pump Type : Top Discharge, Dewatering, Agitator
Discharge Size : 3" NPT
Max. Submerged Depth : 65'
Min. Submerged Depth : 7.6"
Shipping Weight:Lbs : 125
CONSTRUCTION/MATERIAL DATA
Motor Casing: 304SS
Pump Volute: HARDENED DUCTILE IRON, 223 BHN
Lip Seals &0-Rings: BUNA-N
Rotor Shaft: 304SS
External Hardware: 304SS
ELECTRICAL/MOTOR DATA
Motor Rating: Hp: 3
Motor Rpm: 3450
Motor Insulation Cuss: F
Motor Service Factor: 1.15
Voltage: 230
Current F.La: 14.2
Motor Protection: AUTO RE-SET AMP OVERLOAD SWITCH
Power Cord: Gage; Length: AWG 12/3; 50'; SJO
Maximum Liquid Temperature: 104BF
Additional Information
Manufacturer: BJM Pumps, LLC
For More Information on the LWA2200-230 Submersible Light-Weight Agitator Dewatering Pumps,
[Click Here] to Link to Manufacturer Web Site
