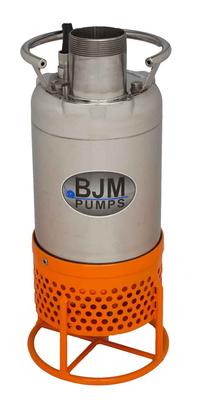

LWA15-230T Submersible Light-Weight Agitator Dewatering Pumps

LWA15-230T

BJM Pumps, LLC

  • Hard Metal Submersible dewatering pumps
  • Designed and constructed for dewatering sand, silt, coal fines and abrasive light slurries.
  • Chrome Iron impeller and wear plate
  • Hardened ductile iron agitator and volute
  • Built-in agitator mixes settled solids with pump water to restore sump or basin volume
  • Light Weight

    • Quick Overview

      Recommended accessories

      Manual Starter Box:
      • Manual On/Off starter box for LWA15-230 = BJM Item # 201147
      • Manual On/Off starter box for LWA15-460 = BJM Item # 201119
      • Manual On/Off starter box for LWA15-575 = BJM Item # 201119

      Auto Starter Box:
      • Auto On/Off starter box for LWA15-230 = BJM Item # 201140
      • Auto On/Off starter box for LWA15-460 = BJM Item # 201120
      • Auto On/Off starter box for LWA15-575 = BJM Item # 201120

      Simplex Control Panel - (3 mechanical float switches):
      • Three Phase control Panel for LWA15-230 = BJM Item # 201084
      • Three Phase control Panel for LWA15-460 = BJM Item # 201080
      • Three Phase control Panel for LWA15-575 = BJM Item # 201080

      Duplex Control Panel - (4 mechanical float switches):
      • Three Phase control Panel for LWA15-230 = BJM Item # 201095
      • Three Phase control Panel for LWA15-460 = BJM Item # 201091
      • Three Phase control Panel for LWA15-575 = BJM Item # 201091

    Interested in this item or want more information?

    Hours:

    Phone: 800-613-3873

    Email: info@aaatool.net

    Can't find what you want? Give us a call and we can help you find it.

    Details

    GENERAL DATA
    • Max. Flow: Gpm: 181
    • Max. Head: Ft: 55'
    • Pump Type: Top Discharge, Dewatering, Agitator
    • Discharge Size: 3" Npt
    • Max. Submerged Depth: 65'
    • Min. Submerged Depth: 7.6"
    • Shipping Weight:Lbs: 128
    • Processing Rate Cellulose: 6,000 Cu.Ft. Per Hour 6,200 Lbs. Per Hour
    • Processing Rate Fiberglass: 3,900 Cu.Ft. Per Hour 4,100 Lbs. Per Hour

    CONSTRUCTION/MATERIAL DATA
    • Motor Casing : 304Ss
    • Pump Volute : Hardened Ductile Iron, 223 Bhn
    • Lip Seals & O-Rings : Buna-N
    • Rotor Shaft : 304Ss
    • External Hardware : 304Ss

    ELECTRICAL/MOTOR DATA
    • Motor Rating: Hp : 2
    • Motor Rpm : 3450
    • Motor Insulation Class : F
    • Motor Service Factor : 1.15
    • Voltage : 230
    • Current F.L.A. : 5.8
    • Motor Protection : Auto Re-Set Amp Overload Switch
    • Power Cord: Gage; Length : A.W.G 14/5; 50'; Soow
    • Maximum Liquid Temperature : 104°F

    Additional Information

    Manufacturer: BJM Pumps, LLC
    For More Information on the LWA15-230T Submersible Light-Weight Agitator Dewatering Pumps, [Click Here] to Link to Manufacturer Web Site
