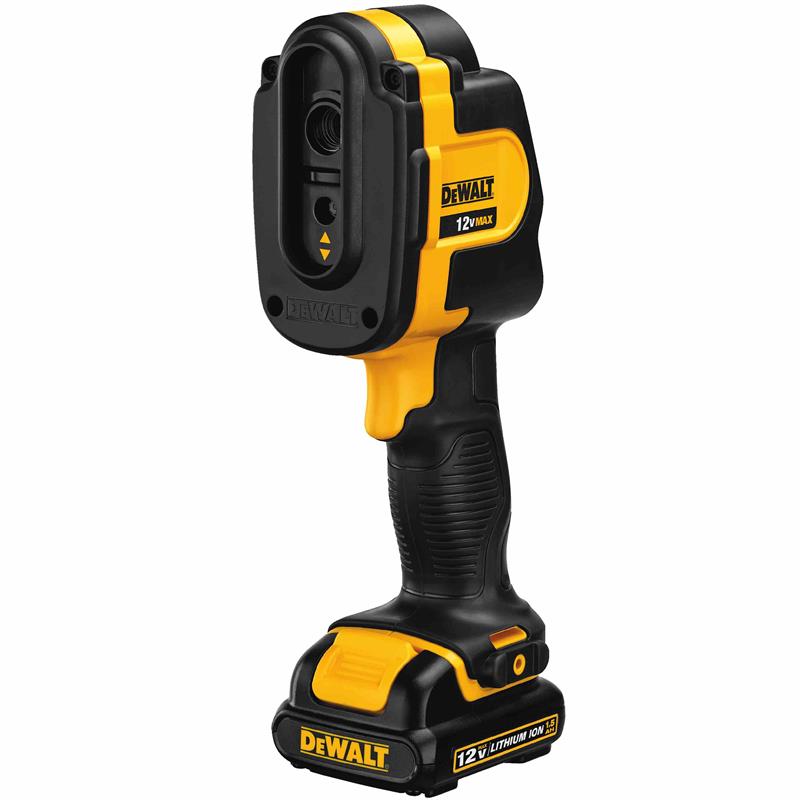

12V MAX* Imaging Thermometer Kit

Features & Specs

FEATURES

• Patent pending imaging technology measures and displays both thermal and visual images
• Non-contact temperature measurement (14°F to 480°F) for ease of use over distance and accuracy
• Visual and thermal images can be blended for quickly diagnosing temperature issues and aiding in communication
• Photo capture on micro SD card for documentation
• Hot and cold tracker quickly identifies trouble spots
• Adjustable emissivity improves accuracy across a wide range of materials
• Includes PC report writing software (download from link below)

Specifications

• Accuracy Below 200º F, +/-3.6º F, Above 200º F, +/-2%, assumes ambient operating temperature
• Adjustable Emissivity 0.1 to 1.0, Adjustable in Increments of 0.01
• Data Storage Photo Capture (Visual, Thermal and Blended) on Micro SD Card
• Display Type 2.2" Color Display for Visual, Thermal (15x15) and Blended Images
• Field of View; Distance: Spot (IFOV) 1" @ 39.3" (25mm @ 1m)
• Operating Temperature Range 23º F to 113º F (-5º C to 45º C)
• Power Tool Type Cordless
• System 12V MAX*
• Temperature Measurement Range 14º F to 480º F (-10º C to 250º C)
• Temperature Storage Range -25º F to122º F (-32º C to 50º C)

Includes

• DCT416 Imaging Thermometer
• Micro SD Card
• Report Writing Software (Download from DEWALT.com)
• (1) 12V MAX* Li-Ion battery
• Fast Charger
• Kit Box
