P3500 Powder-actuated Semi-automatic Tool
Tool Description
The P3500 is a low velocity, semi-automatic .27 caliber tool which can be used to install .300 head drive pins, 8mm head drive pins and 1/4"-20 threaded studs, up to 3" in total length. The P3500 is designed for high speed and repetitive volume applications.
Technical Data : Tool Body : Precision cast AluminumTool Length : 13-5/8"Tool Weight : 5 lbs.Pin Length : 1/2" to 3" Total LengthLoad Type : .27 Caliber 10 Load Strip and .27 Caliber Safety StripPower Level : Brown (2), Green (3), Yellow (4), Red (5)
General Applications and Uses : Conduit Clip To Concrete Electrical Fixture To SteelWood To ConcreteConcrete FormingWood To SteelCommercial And Residential ConstructionElectrical Fixture To Concrete
Ordering Information : | Catalog Number | Description | Standard Box |
| 52000 | P3500 Tool (Deluxe Kit):
- Safety Glasses, Disposable Ear Plugs
- Allen Wrenches, Wire Brushes, Tool Lubricant
- Spall Guard, Spare Parts
- Pin Starter Kit:
- .300 Headed Pins : (50) 1/2", (50) 3/4", (30) 3" with 7/8" washer
- Case
| 1 |

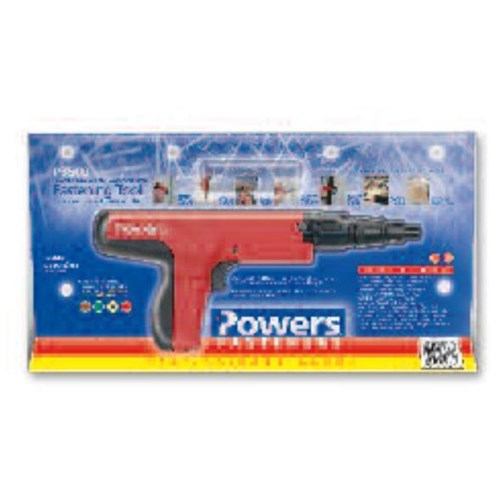

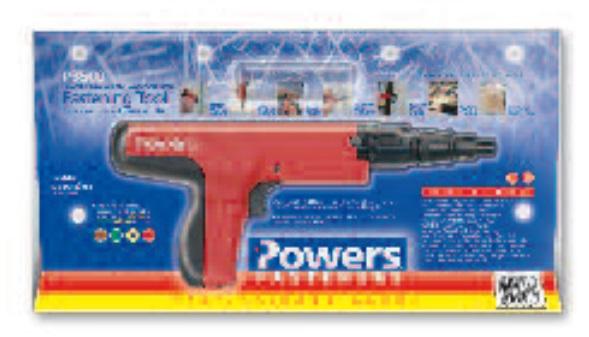

| 52001 | P3500 Tool (Blister Pack) | 1 |
| 52106 | Piston Ring for the P3500 | 1 |
| 52108 | Guide 2/F-3 for the P3500 | 1 |
| 52110 | Base Plate 2/S-13 for the P3500/PA3500 | 1 |
| 52120 | Shear Clip for the P35s/P3500/PA3500 | 1 |
| 52112 | Piston Stop for the P3500/PA3500 | 1 |
Piston for Installing 8mm Head Drive Pins : | Catalog Number | Description | Standard Box |
| 52100 | Piston 2/DN-1 (for 8mm Head Drive Pins) for the P3500 | 1 |
Limited Access Baseplates : | Catalog Number | Description | Standard Box |
| 52114 | Guide 2/F-4 Limited Access for the P3500 | 1 |
| 52116 | Baseplate 2/F-14-1 Limited Access for the P3500 | 1 |
Pole Tools for Overhead Attachments : | Catalog Number | Description | Standard Box |
| 50065 | 6' Di-electric Pole Tool | 1 |
| 50066 | 8' Di-electric Pole Tool | 1 |
