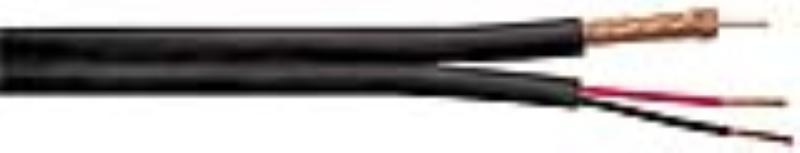

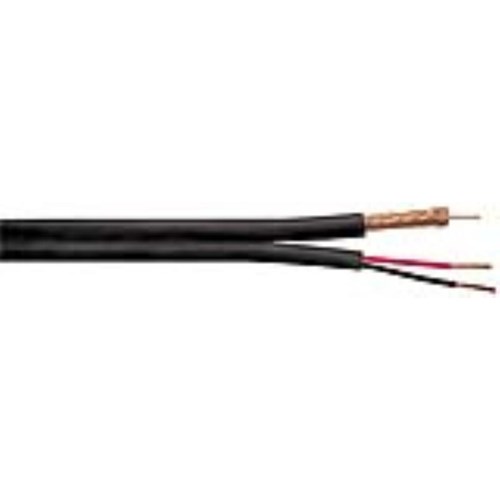

Rg6 18Bc 95 Bc 18/2 Str Bc Siamese
Features & Applications :-
- Bare Copper Center Conductor
- 95% Bare Copper Braid
- PE Dielectric
- CCTV
Interested in this item or want more information?
Hours:
Phone: 800-613-3873
Email: info@aaatool.net
Can't find what you want? Give us a call and we can help you find it.
Details
Construction Parameters
|
| 1st part |
| | OD (in)* |
| Conductors | 18 AWG (1/. 040) Solid Bare Copper | 0.040 |
| Dielectric | Foam Polyethylene color natural | 0.175 |
| Shielding | 95% Copper Braid | 0.197 |
| 2nd part |
| Conductor | 18 AWG (7/. 015) Stranded Bare Copper | 0.046 |
| Dielectric | PVC | 0.074 |
| Twist | Two conductors (1 Black & 1 Red) and two Polyolefin fillers are twisted
together and wrapped overall in a clear polyester tape. | 0.150 |
| Final |
| Jacket | PVC extruded over Part 1 and Part 2 with web attached | Appx.
0.270 x 0.495 |
Electrical Properties
| Coax | VALUE* |
| Impedance (ohms) | - | 75 |
| Capacitance (pF/ft) | - | 17.3 |
| Velocity of Propagation (%) | - | 78 |
| Attenuation (Max. db/100 ft)
| 50 MHz | 1.5 |
100 MHz | 2.1 |
200 MHz | 3.1 |
400 MHz | 4.5 |
700 MHz | 5.9 |
1000 MHz | 7.3 |
Additional Information
Manufacturer: Coleman Cable - CCI
