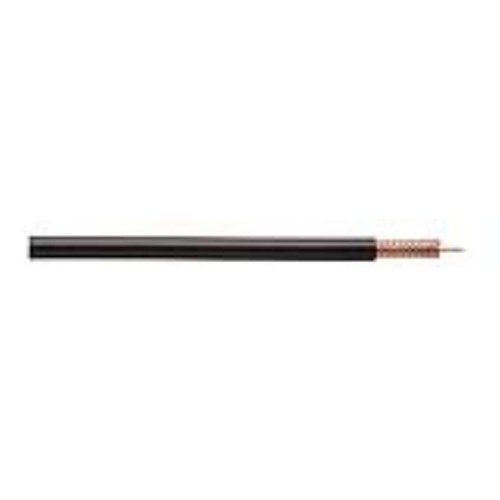

Coleman Cables Rg8X 19/29Bc 95 Bc Mini Coax

991020

Features & Applications:-

Hours: 6am - 5pm

Phone: 800-613-3873

Email: info@aaatool.net

Can't find what you want? Give us a call and we can help you find it.

Construction Parameters

Electrical Properties:-


		Wall (in)*	OD (in)*
Conductor	19/29 Stranded Bare Copper	-	0.056
Dielectric	Foam Polyethylene color natural	0.0495	0.155
Shielding	95% Copper Braid	-	0.177
Jacket	PVC	0.0325	0.242

		VALUE*
Conductor Resistance (ohms/kft)	-	4.3
Impedance(ohms)	-	50
Capacitance (pF/ft)	-	27
Velocity of Propagation (%)	-	80
Attenuation** (db/100 ft)	50 MHz	2.5
	50 MHz	2.5
	100 MHz	3.7
	200 MHz	5.4
	400 MHz	8.0
	900 MHz	12.8

Manufacturer: Coleman Cable - CCI

For More Information on the Coleman Cables Rg8X 19/29Bc 95 Bc Mini Coax, [Click Here] to Link to Manufacturer Web Site
