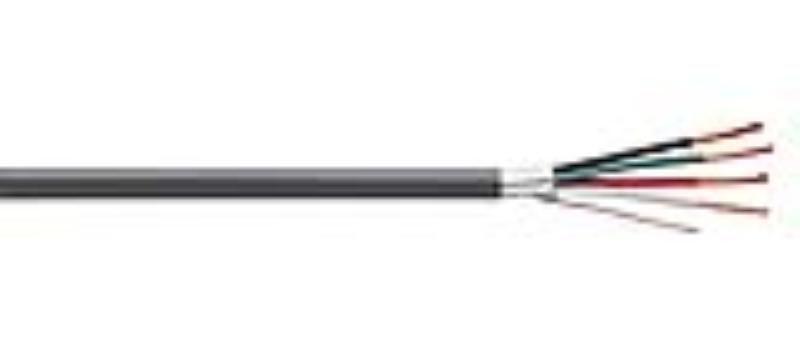

STRANDED TC SHIELDED CM/CL2

Coleman Cable - CCI

SKU / Product Info	Quantity
671802 18/2
671803 18/3

Features & Applications :-

Stranded Tinned Copper Conductors
PVC Jacket, Polyethylene Insulation
Aluminum Mylar overall shield with tinned copper drain wire
Control cable for power-limited circuits
Processing equipment, audio, and other low voltage control uses requiring cable with excellent electrical characteristics

Hours: 6am - 5pm

Phone: 800-613-3873

Email: info@aaatool.net

Can't find what you want? Give us a call and we can help you find it.

Construction Parameters

Electrical Properties


		Wall (in)*	OD (in)*
Conductor	18 AWG (16/30) Stranded Tinned Copper		0.047
Dielectric	Polyethylene	0.018	0.083
Shielding	Two (2) insulated conductors are twisted and wrapped overall in an Aluminum/Mylar Foil with Aluminum side out. Then a 20 AWG (10/30) Tinned Copper Drain Wire is added to outside of core.		0.169
Jacket	PVC	0.030	0.229

Miscellaneous Information

		VALUE*
Conductor Resistance (ohms/kft)		7.5
Pair Capacitance pf/ft @ 1 kHz)		24

Wire Colors	Black ,Natural
Jacket Color	Chrome Gray
Jacket Print (Black)	CCI E100316 18 AWG TYPE CM/CL2 (UL) OR AWM STYLE 2092
Applicable NEC Article	725, 800 & 310
Flame rating	UL-1581 Vertical Tray Flame Test
Max. Operating Volts	300 RMS
Max. Operating Temperature	60°C
Approximate Weight (lb/1000 ft)	29

Manufacturer: Coleman Cable - CCI
