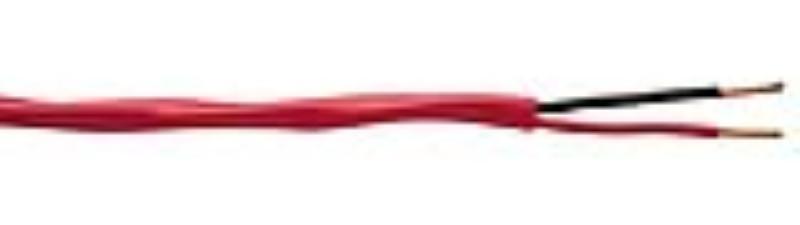

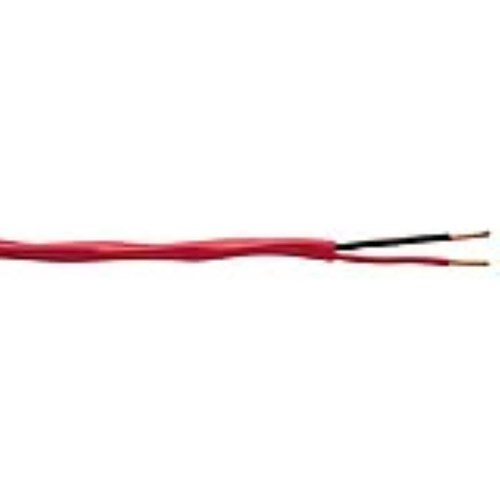

SOLID BC FPLR

Coleman Cable - CCI

Features & Applications:-

PVC with Sun Resistance jacket
Sequential Footage Marketing
Pressure-Extruded Jacket is more staple resistant than a tubed jacket.
Power limited circuit and communication cable for non-riser applications.
Remote Control, Signaling, Security Systems, Communications, Single Line Telephone, Intercom/P.A. Systems

Hours: 6am - 5pm

Phone: 800-613-3873

Email: info@aaatool.net

Can't find what you want? Give us a call and we can help you find it.

Construction Parameters :-

Electrical Properties:-

Conductor	12 AWG Bare Copper
Stranding	Solid
Insulation Material	PVC
Insulation Thickness	0.010'' Nom.
Insulated Conductor Diameter	0.101'' Nom.
Number of Conductors	2
Lay Length	5.00'' Nom
Jacket Material	PVC
Jacket Thickness	0.019'' Nom.
Overall Cable Diameter	0.240'' Nom
Approximate Cable Weight	52.7 Lbs/1M' Nom
Flame Rating	UL 1666 Riser Flame Test

Temperature Rating	-20°C to 60°C
Operating Voltage	300 V RMS Max.
Capacitance Between Conductors @ 1 KHz	29 pF/ft Nom.
Capacitance Between Conductors to Shield @ 1 KHz	-----
DC Resistance per Conductor @ 20°C	1.59 Ohms/1M' Nom.
