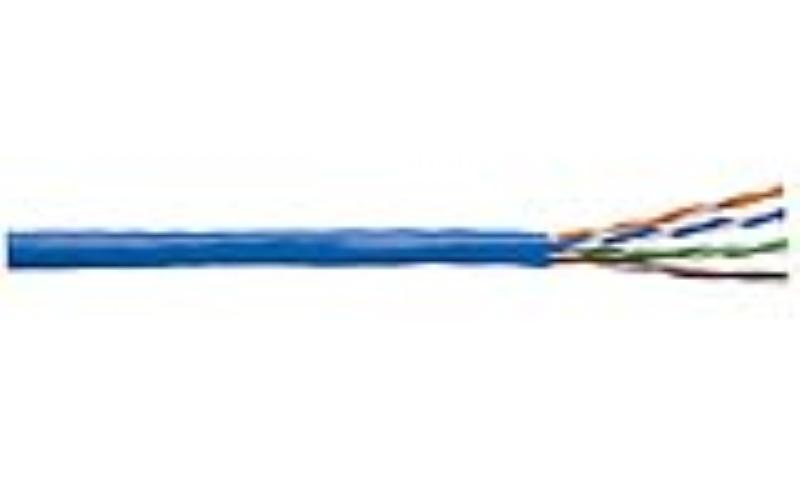

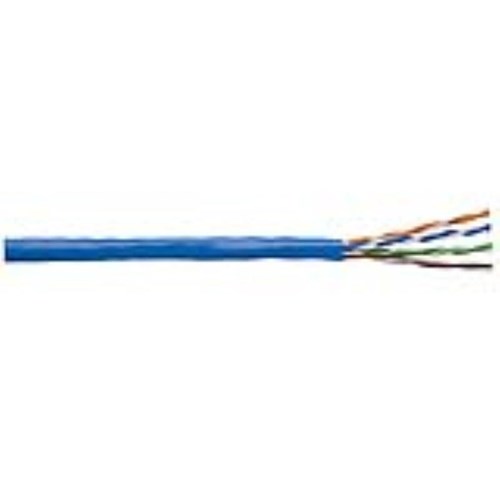

Cat 5E 24/4 Pr Solid Bc Cmr

96263

Features & Applications:-

24 AWG Bare Copper Conductors
Polyethylene (Non-Plenum) Insulation
PVC (Non-Plenum) Jacket
Gigabit Ethernet, Bi-Directional Transmissions, 100 BaseT, 1000 BaseT, Broad Band Video, Fast Ethernet, 155 Mbs ATM, TI, ISDN, 622 Mbps ATM
Commercial/Residential Phone/Fax/Internet systems

Hours: 6am - 5pm

Phone: 800-613-3873

Email: info@aaatool.net

Can't find what you want? Give us a call and we can help you find it.

Construction Parameters:


PART NUMBER	96263
DESCRIPTION	24 AWG /4 Pair Category 5e CMR
COMPLIANCE	ETL Listed Type CMR / CMX-Outdoor
	C(ETL) listed CMR FT4
	Complies with TIA/EIA 568-C.2
	Tested to 350 MHz


		DIAMETER
CONDUCTOR	24 AWG Solid Bare Copper	0.020"
DIELECTRIC	Solid PE	0.036"
Pair lays	Each pair has different lay length for cross-talk prevention and ripcord added.
JACKET	PVC	0.200"= Nominal value

Manufacturer: Coleman Cable - CCI

For More Information on the Cat 5E 24/4 Pr Solid Bc Cmr, [Click Here] to Link to Manufacturer Web Site
