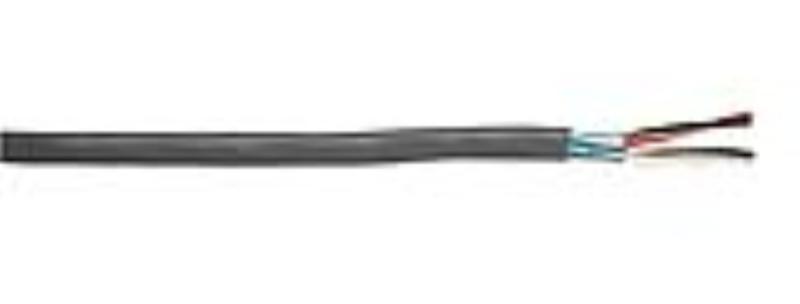

PAIR STRANDED BC EPS CMR/CL3R

Coleman Cable - CCI

SKU / Product Info	Quantity
95510 18/2
95900 22/2

Features & Applications:-

PVC with Sun Resistance jacket
Ripcord and Sequential Footage Marking
Each pair individually shielded with Aluminum Mylar shield and tinned copper drain wire
Power limited circuit and communication cable for riser or non-riser applications.
Remote Control, Signaling, Security Systems, Communications, Intercom/P.A. Systems, Sound/Audio, and Nurse Call

Hours: 6am - 5pm

Phone: 800-613-3873

Email: info@aaatool.net

Can't find what you want? Give us a call and we can help you find it.

Construction Parameters :-

Electrical Properties:-

Conductor	18 AWG Bare Copper
Stranding	7/.0152
Insulation Material	PVC
Insulation Thickness	0.008'' Nom
Insulated Conductor Dimensions	0.061'' Nom
Number of Conductors	2
Lay Length (Pairs)	2.00'' Nom
Lay Length (Overall)	4.00'' Nom.
Shield (Each Pair)	Alum/Mylar
Drain (Each Pair)	24 AWG Solid Tinned Copper
Jacket Material	PVC
Jacket Thickness	0.018'' Nom.
Overall Cable Diameter	0.270'' Nom.
Approximate Cable Weight	39.8 Lbs/1M' Nom
Flame Rating	UL 1666 Riser Flame Test

Temperature Rating	-20°C to 60°C
Rated Voltage	300 V RMS Max
Capacitance Between Conductors @ 1 KHZ	62 pF/ft Nom.
Capacitance Between Conductors to Shield @ 1 KHz	114 pF/ft Nom.
DC Resistance per Conductor @ 20°C	6.32 Ohms/1M' Nom.

Manufacturer: Coleman Cable - CCI

For More Information on the PAIR STRANDED BC EPS CMR/CL3R, [Click Here] to Link to Manufacturer Web Site
