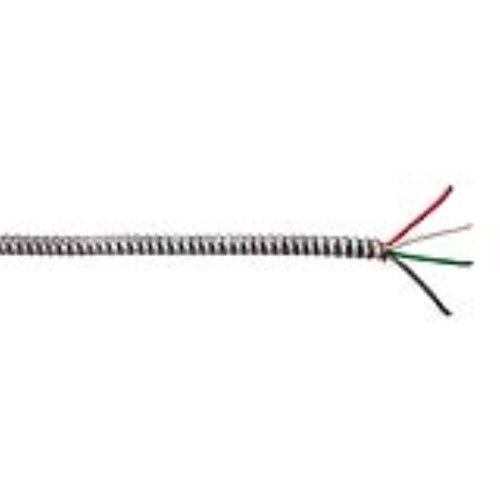

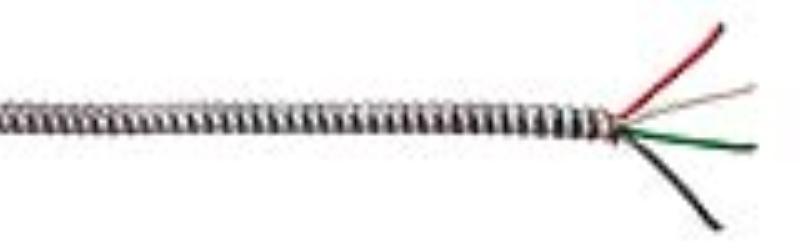

Stranded Corra/Clad W/Ground

Coleman Cable - CCI

Features & Applications:-

Installs fast & easy to lower labor costs in place of conduit and wire
Provides superior grounding
Flexi-Rib™ design is watertight, bends and stays and can be shaped to tight angles
Lightweight aluminum armor means Corra/Clad weighs less than steel armored cable
Conductors are soft drawn annealed copper (solid or stranded). Insulation on 18 and 16 AWG is UL Type TFN or TFFN: on 14 AWG and larger, it is UL Type THWN
Conductors are cabled with fillers and with an overall seamless corrugated continuous aluminum sheath
Type MC Cable can be furnished with a PVC jacket over the sheath for use in corrosive environments or direct burial.
Services, feeders and branch circuit
Power, lighting, control and signal circuits
Indoors, exposed or concealed
Direct buried or in concrete encasement (with PVC jacket)
In cable trays or as open runs
Under raised floors, and above suspended ceilings
Plenums and any air handling passageway
Hazardous (classified) environments
Health Care Facilities – outer jacket is an approved grounding means and employs a continuous gas/vapor tight aluminum sheath

Hours: 6am - 5pm

Phone: 800-613-3873

Email: info@aaatool.net

Can't find what you want? Give us a call and we can help you find it.

Construction Parameters :-

Electrical Properties :-


Conductor	10 AWG Bare Copper
Stranding	19/.0234"
Insulation Material	PVC/Nylon
Insulation Thickness	0.026'' Nom.
Insulated Conductor Diameter	0.164'' Nom.
Number of Conductors	3
Lay Length	5.50'' Nom.
Filler	Dry Jute
Separator/Wrap	Clear Mylar
Armor Material	Corrugated Aluminum
Armor Thickness	0.035"Nom.
Overall Cable Diameter	0.548'' Nom.
Approximate Cable Weight	198.0 Lbs/1M' Nom.
Flame Rating	Meets 2 hour through-penetration fire stop requirements.


Temperature Rating	-20°C to 90°C
Operating Voltage	600 V RMS Max.
Capacitance Between Conductors @ 1 KHz	37 pF/ft Nom.
Ampacity per NEC Table 310-16	40.00 amps per conductor (Assume 4 current carrying conds.)
DC Resistance per Conductor @ 20°C	1.0 Ohms/1M' Nom.

Manufacturer: Coleman Cable - CCI
