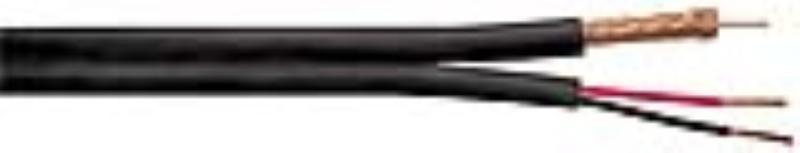

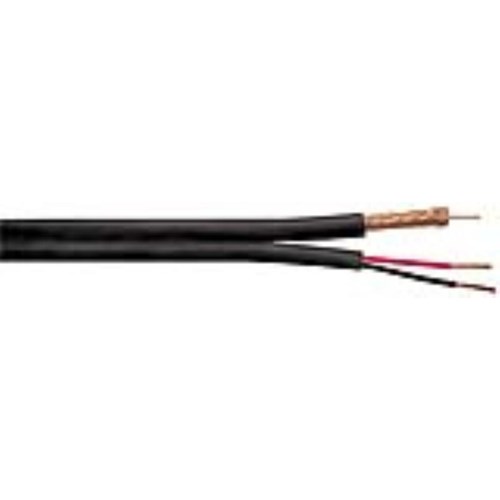

Rg59 20Bc 95 Bc &18/2 Str Bc Round
Features & Applications :-
- Bare Copper Center Conductor
- 95% Bare Copper Braid
- PE Dielectric
- CCTV
Interested in this item or want more information?
Hours:
Phone: 800-613-3873
Email: info@aaatool.net
Can't find what you want? Give us a call and we can help you find it.
Details
Construction Parameters
|
| 1st part |
| | OD (in)* |
| Conductors | 20 AWG (1/.032) Solid Bare Copper | 0.032 |
| Dielectric | Foam Polyethylene color natural | 0.144 |
| Shielding | 95% Copper Braid | 0.171 |
| Jacket | PVC | 0.045 |
| 2nd part |
| Conductor | 18 AWG (16/30) Solid Bare Copper | 0.045 |
| Dielectric | PVC | 0.144 |
| Jacket | One Part 1 and 2 Part 2’s are jacket under one jacket. | 0.340 |
Electrical Properties
| Coax | VALUE* |
| Impedance (ohms) | - | 75 |
| Capacitance (pF/ft) | - | 17 |
| Velocity of Propagation (%) | - | 78 |
| Attenuation (Max. db/100 ft)
| 50 MHz | 1.7 |
216 MHz | 3.6 |
240MHz | 3.8 |
260 MHz | 4.0 |
270 MHz | 4.0 |
300 MHz | 4.3 |
Additional Information
Manufacturer: Coleman Cable - CCI
For More Information on the Coleman Cables Rg59 20Bc 95 Bc &18/2 Str Bc Round,
