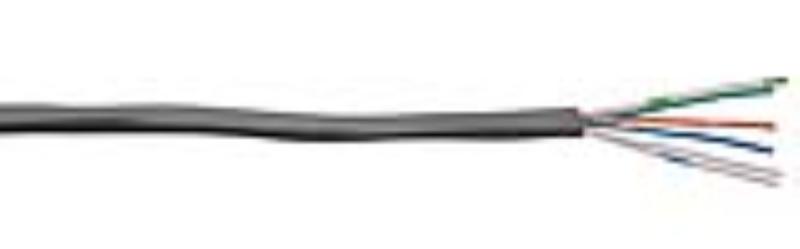

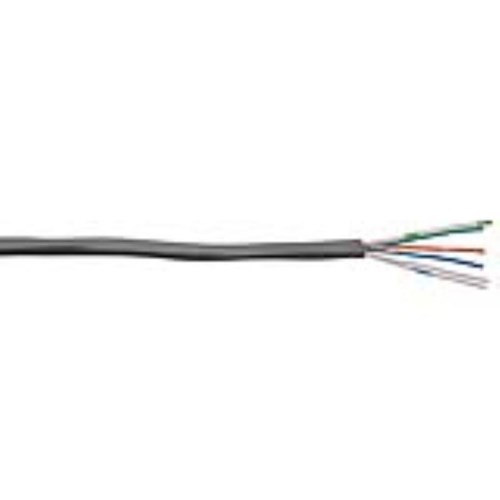

PR SOLID BC CMR

Coleman Cable - CCI

SKUInfo/Size
89402 22/2
89403 22/3
89405 22/4
96202 24/2
96203 24/3
96204 24/4
96206 24/6
96210 24/25
97272 23/4
996212 24/12

Quick Overview

    Features & Applications:-
    • 24 or 22 AWG Solid Bare Copper Conductors
    • PVC Jacket
    • 4 Mbps Token Ringä (IEEE 802.5)
    • 10Mbps 10 Base-T ETHERNETTM (IEEE 802.3)
    • Residential and Office Phone/Fax/Internet Systems
Interested in this item or want more information?

Hours:

Phone: 800-613-3873

Email: info@aaatool.net

Can't find what you want? Give us a call and we can help you find it.

Details


Construction Parameters:

PART NUMBER 89402
DESCRIPTION 22 AWG /2 Pair Category 3 CMR
COMPLIANCE ETL Listed Type CMR / CMX-Outdoor
C(ETL) listed CMR FT4
Complies with TIA/EIA 568-C.2
  DIAMETER
CONDUCTOR 22 AWG Solid Bare Copper 0.020"
DIELECTRIC PVC 0.038"
Pair lays Each pair has different lay length for cross-talk prevention and ripcord added.
JACKET PVC 0.410

Additional Information


Manufacturer: Coleman Cable - CCI
For More Information on the PR SOLID BC CMR, [Click Here] to Link to Manufacturer Web Site
