STRANDED BC EPS CMP/CL3P

Coleman Cable - CCI

SKU / Product Info	Quantity

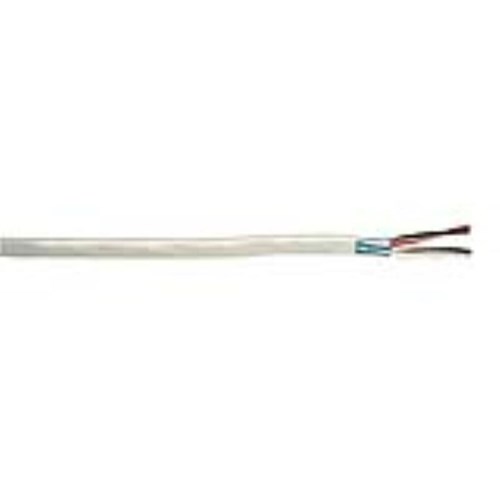

77304 22/2

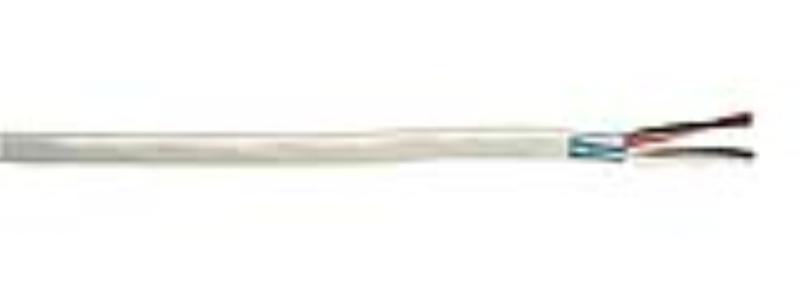

77306 22/3

Features & Applications :-

Low Smoke PVC jacket
Ripcord and Sequential Footage Marking
Each pair individually shielded with Aluminum Mylar overall shield with tinned copper drain wire
Power limited circuit and communication cable for plenum applications.
Remote Control, Signaling, Security Systems, Communications, Intercom/P.A. Systems, Sound/Audio, and Nurse Call

Hours: 6am - 5pm

Phone: 800-613-3873

Email: info@aaatool.net

Can't find what you want? Give us a call and we can help you find it.

Construction Parameters

Electrical Properties :

Conductor	22 AWG Bare Copper
Stranding	7/30
Insulation Material	Low Smoke PVC
Insulation Thickness	0.010'' Nom
Insulated Conductor Dimensions	0.041'' Nom.
Number of Conductors	2
Lay Length(Pairs)	1.75'' Nom.
Lay Length(Overall)	Parallel
Shield	Alum/Mylar
Drain	24 AWG Solid Tinned Copper
Jacket Material	Low Smoke PVC
Jacket Thickness	0.017'' Nom.
Overall Cable Diameter	0.185'' Nom.
Approximate Cable Weight	23.8 Lbs/1M' Nom.
Flame Rating	UL 910 Steiner Tunnel Smoke and Flame Test

Temperature Rating	-20°C to 75°C
Rated Voltage	300 V RMS Max
Capacitance Between Conductors @ 1 KHZ	39 pF/ft Nom.
Capacitance Between Conductors to Shield @ 1 KHz	73 pF/ft Nom.
DC Resistance per Conductor @ 20°C	16.19 Ohms/1M' Nom.

Manufacturer: Coleman Cable - CCI

For More Information on the STRANDED BC EPS CMP/CL3P, [Click Here] to Link to Manufacturer Web Site
