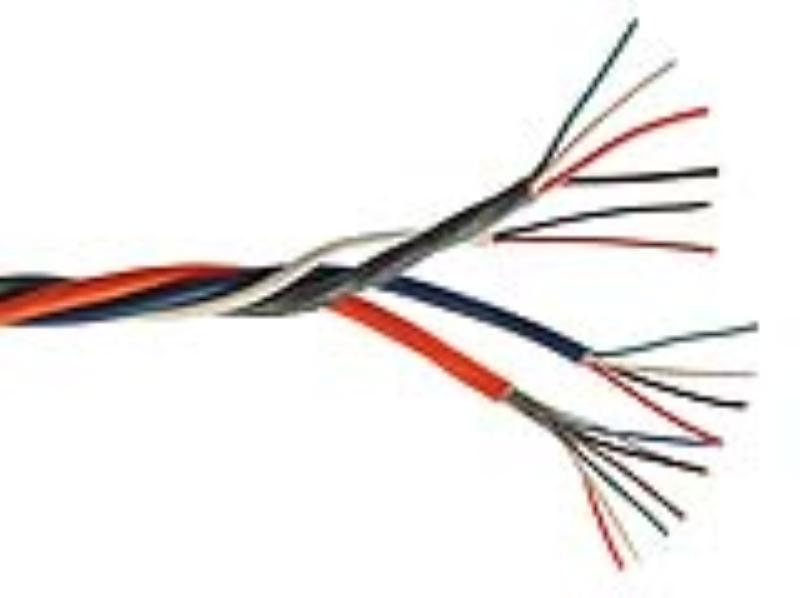

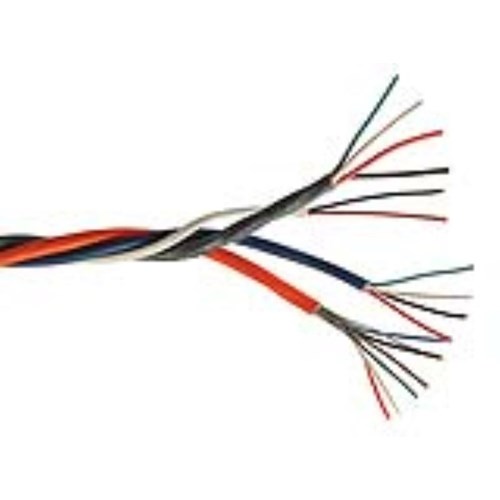

Details
Construction Parameters:-
|
| Part 1
|
| Conductor | 18 AWG (1/.040) Solid Copper Clad Steel | 0.040 |
| Dielectric | Foam Polyethylene | 0.180 |
| Shielding 1 & 2 | 100% Bonded Aluminum/Polyester/Aluminum Tape plus 40% Aluminum Braid | 0.216 |
| Shielding 3 & 4 | 100% Aluminum/Polyester/Aluminum Tape plus 60% Aluminum Braid | 0.249 |
| Part 2 |
|
| Conductor | 24 AWG (1/.020) Solid Bare Copper | 0.020 |
| Dielectric | Polyethylene | 0.038 |
| Assembly | "Two Insulated conductors are twisted into pairs and four pairs are cabled into a Core
core." | |
| Final |
|
| Jacket | "Part 1 and Part 2 are jacketed in a two legged construction with a web between
each leg" | 0.290 x 0.575 |
Electrical Properties:-
|
| VALUE* |
| Impedance (ohms) | | 75 |
| Capacitance pf/ft | | 17 |
| Velocity of Propagation (%) | | 81 |
| Attenuation (Max db/100 ft) | 10 MHz | 1.85 |
50 MHz | 1.0 |
100 MHz | 1.3 |
200 MHz | 2.05 |
400 MHz | 3.05 |
700 MHz | 5.95 |
1000 MHz | 7.55 |
1200 MHz | 8.9 |
1450 MHz | 10.1 |
1500 MHz | 10.3 |
2000 MHz | 11.3 |
2500 MHz | 12.2 |
3000 MHz | 13.48 |
Additional Information
Manufacturer: Coleman Cable - CCI
