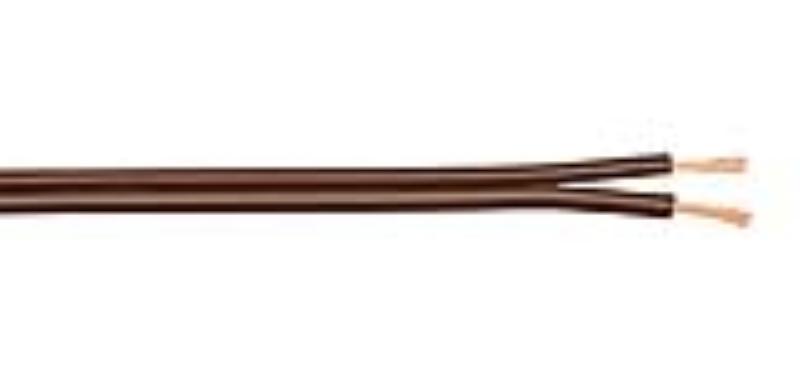

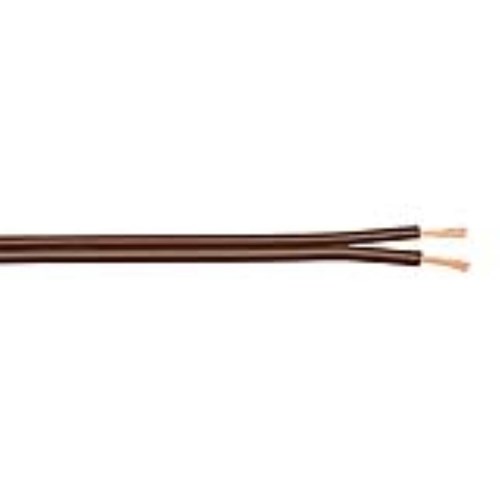

SPT-2 LAMPCORD

Coleman Cable - CCI

SKU / Product Info	Quantity
60126 16/2

Features & Application:-

Hours: 6am - 5pm

Phone: 800-613-3873

Email: info@aaatool.net

Can't find what you want? Give us a call and we can help you find it.

Construction Parameters :-

Electrical Properties:-

Conductor	16 AWG Bare Copper
Stranding	26/30
Insulation Material	PVC
Insulation Thickness	0.048'' Nom
Insulated Conductor Dimensions	0.155" x 0.303" Nom.
Number of Conductors	2
Approximate Cable Weight	36.0 Lbs/1M' Nom.
Flame Rating	UL/CSA Horizontal Flame Test

Temperature Rating	-20°C to 60°C
Rated Voltage	300 V RMS Max
DC Resistance per Conductor @ 20°C	3.46 Ohms/1M' Nom.

Manufacturer: Coleman Cable - CCI

For More Information on the SPT-2 LAMPCORD, [Click Here] to Link to Manufacturer Web Site
