Details
Construction Parameters :-
| Conductor | 18 AWG Bare Copper (Bare and Tinned with Clear Insulation) |
| Stranding | 41/34 |
| Insulation Material | PVC |
| Insulation Thickness | 0.033'' Nom. |
| Insulated Conductor Dimensions | 0.112" x 0.210" Nom. |
| Number of Conductors | 2 |
| Approximate Cable Weight | 20.9 Lbs/1M' Nom |
| Flame Rating | UL/CSA Horizontal Flame Test |
Electrical Properties:-
| Temperature Rating | -20°C to 60°C |
| Rated Voltage | 300 V RMS Max |
| Current Per Conductor | 10 AMPS Max. |
| Capacitance Between Conductors @ 1 KHz | 33 pF/ft Nom. |
| DC Resistance per Conductor @ 20°C | 6 Ohms/1M' Nom. |
Additional Information
Manufacturer: Coleman Cable - CCI

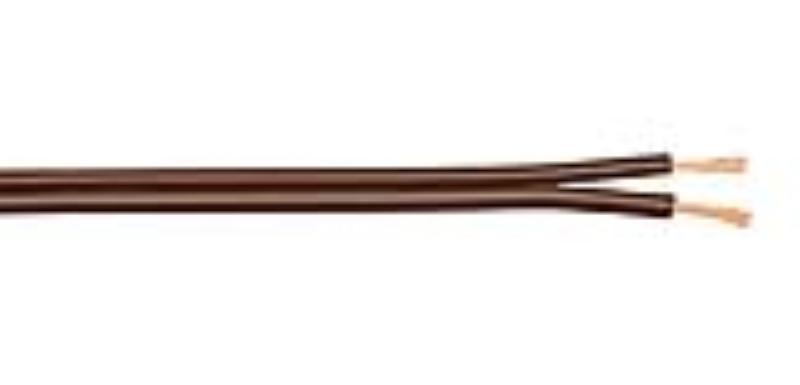

For More Information on the SPT-1 LAMPCORD,
