SKUInfo/Size
55264 18/2
55266 16/2
55267 14/2
55269 12/2
55271 8/2
55272 10/2

Quick Overview

    Features & Application :-

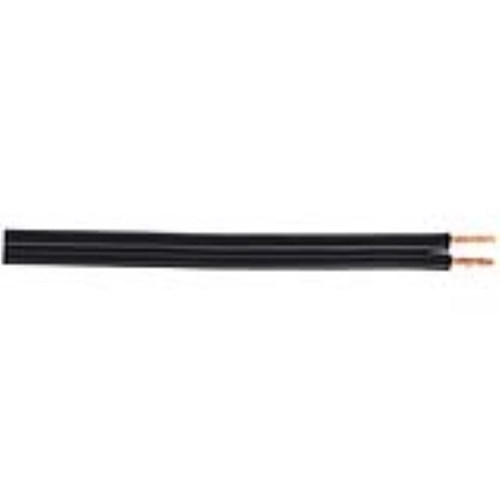

    • Stranded low energy circuit cable
    • Sunlight resistant
    • Sequential footage marking
    • Low Voltage Underground Lighting
Interested in this item or want more information?

Hours:

Phone: 800-613-3873

Email: info@aaatool.net

Can't find what you want? Give us a call and we can help you find it.

Details


Construction Parameters

Electrical Properties:-

Conductor 18 AWG Bare Copper
Stranding 16/30
Insulation/Jacket Material PVC
Insulation/Jacket Thickness 0.048" Nom.
Overall Dimensions 0.142" x 0.280" Nom.
Temperature Rating -20°C to 60°C
OperatingVoltage 150 V Max.
DC Resistance per Conductor @ 20°C 6.49 Ohms/1M' Nom.

Additional Information


Manufacturer: Coleman Cable - CCI
For More Information on the UNDERGROUND LIGHTING, [Click Here] to Link to Manufacturer Web Site
