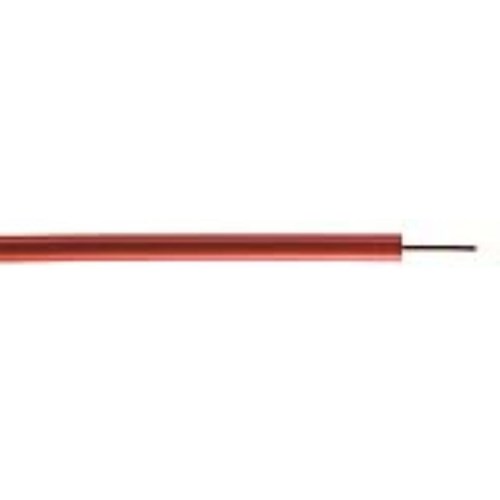

STRANDED BC UF 600V

Coleman Cable - CCI

Features & Applications:-

Hours: 6am - 5pm

Phone: 800-613-3873

Email: info@aaatool.net

Can't find what you want? Give us a call and we can help you find it.

Construction Parameters:-

Electrical Properties:-


Conductor	6 AWG Bare Copper
Stranding	19/.0372"
Insulation Material	PVC
InsulationThickness	0.085'' Nom.
Insulated Conductor Diameter	0.356'' Nom
Number of Conductors	1


Temperature Rating	-20°C to 60°C
Operating Voltage	600 V RMS Max.
DC Resistance per Conductor @ 20°C	0.40 Ohms/1M' Nom.

Manufacturer: Coleman Cable - CCI

For More Information on the STRANDED BC UF 600V, [Click Here] to Link to Manufacturer Web Site
