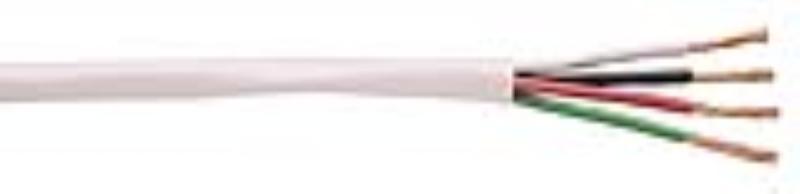

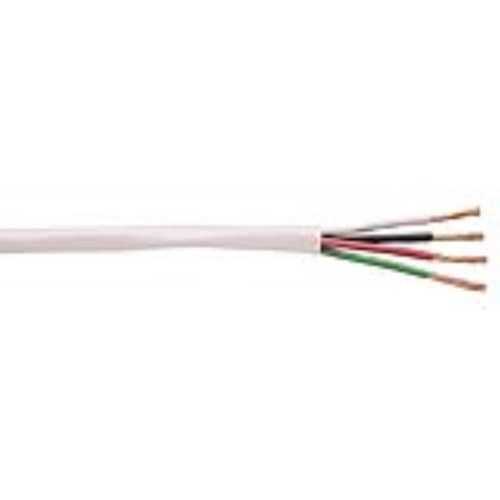

22/4 STRANDED BC CMR/CL2R

Coleman Cable - CCI

SKU / Product Info	Quantity
53112 22/4

Features & Applications:-

PVC with Sun Resistance jacket
Sequential Footage Marketing
Pressure-Extruded Jacket is more staple resistant than a tubed jacket.
Power limited circuit and communication cable for non-riser applications.
Remote Control, Signaling, Security Systems, Communications, Single Line Telephone, Intercom/P.A. Systems

Hours: 6am - 5pm

Phone: 800-613-3873

Email: info@aaatool.net

Can't find what you want? Give us a call and we can help you find it.

Construction Parameters :-

Electrical Properties:-

Conductor	22 AWG Bare Copper
Stranding	7/30
Insulation Material	SR-PVC
Insulation Thickness	0.006'' Nom.
Insulated Conductor Diameter	0.041'' Nom.
Number of Conductors	4
Lay Length	Parallel
Jacket Material	PVC
Jacket Thickness	0.014'' Nom.
Overall Cable Diameter	0.127'' Nom
Approximate Cable Weight	14.5 Lbs/1M' Nom.
Flame Rating	UL 1666 Riser Flame Test

Temperature Rating	-20°C to 60°C
Operating Voltage	300 V RMS Max.
Capacitance Between Conductors @ 1 KHz	32 pF/ft Nom.
Capacitance Between Conductors to Shield @ 1 KHz	-----

Manufacturer: Coleman Cable - CCI

For More Information on the 22/4 STRANDED BC CMR/CL2R , [Click Here] to Link to Manufacturer Web Site
