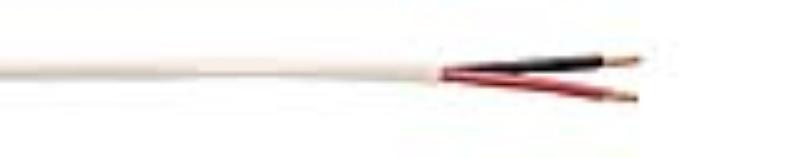

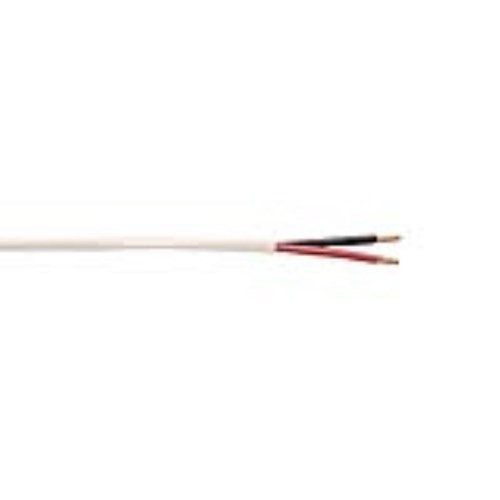

STRANDED BC CM

Coleman Cable - CCI

SKU / Product Info	Quantity
51101 22/2

Features & Applications:-

PVC with sun resistance jacket
Pressure-extruded jacket is more staple resistant than a tubed jacket
Sequential Footage Marketing
Power limited circuit and communication cable for non-riser applications.
Remote Control, Signaling, Security Systems, Communications, Single Line Telephone, Intercom/P.A. Systems

Hours: 6am - 5pm

Phone: 800-613-3873

Email: info@aaatool.net

Can't find what you want? Give us a call and we can help you find it.

Construction Parameters :-

Electrical Properties:-

Conductor	22 AWG Bare Copper
Stranding	7/30
Insulation Material	Foam Polypropylene
Insulation Thickness	0.006'' Nom.
Insulated Conductor Diameter	0.041'' Nom.
Number of Conductors	2
Lay Length	Parallel
Jacket Material	PVC
Jacket Thickness	0.014'' Nom.
Overall Cable Diameter	0.110'' Nom
Approximate Cable Weight	11.1 Lbs/1M' Nom
Flame Rating	UL 1581 Vertical Tray Flame Test

Temperature Rating	-20°C to 75°C
Operating Voltage	300 V RMS Max.
Capacitance Between Conductors @ 1 KHz	20 pF/ft Nom.
Capacitance Between Conductors to Shield @ 1 KHz	-----
DC Resistance per Conductor @ 20°C	16.90 Ohms/1M' Nom.

Manufacturer: Coleman Cable - CCI

For More Information on the STRANDED BC CM, [Click Here] to Link to Manufacturer Web Site
