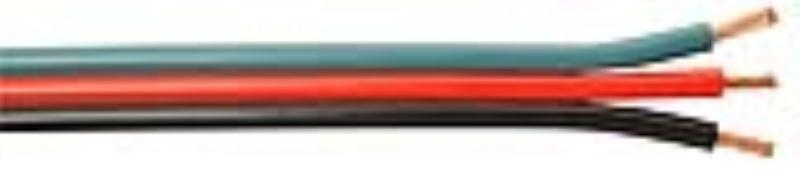

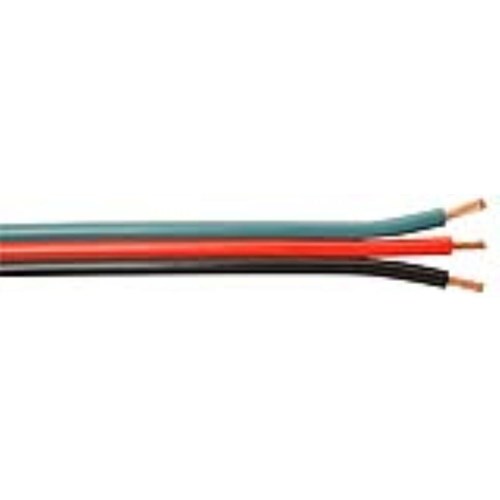

FLAT BONDED PUMP

Coleman Cable - CCI

Features & Applications :-

Hours: 6am - 5pm

Phone: 800-613-3873

Email: info@aaatool.net

Can't find what you want? Give us a call and we can help you find it.

Construction Parameters:-

Electrical Properties:-


Conductor	14 AWG Bare Copper
Stranding	19/.0147
Insulation Material	PVC
InsulationThickness	0.047'' Nom.
Insulated Conductor Diameter	0.164'' Nom.
Number of Conductors	2
Ground Wire	14 AWG 19 Strand PVC Insulated
Lay Length	Parallel
Approximate Cable Weight	71.0 Lbs/1M' Nom.


Temperature Rating	-20°C to 75°C
Operating Voltage	600 V RMS Max
Capacitance Between Conductors @ 1 KHz	33 pF/ft Nom.
DC Resistance per Conductor @ 20°C	2.52 Ohms/1M' Nom.

Manufacturer: Coleman Cable - CCI

For More Information on the FLAT BONDED PUMP, [Click Here] to Link to Manufacturer Web Site
