Details
Construction Parameters:-
|
| Conductor | 14 AWG Bare Copper |
| Stranding | 7/.0242" |
| Insulation Material | PVC |
| InsulationThickness | 0.047'' Nom. |
| Insulated Conductor Diameter | 0.166'' Nom. |
| Number of Conductors | 2 |
| Lay Length | Parallel |
| Jacket Material | PVC |
| Jacket Thickness | 0.047'' Nom. |
| Overall Dimensions | 0.260" x 0.426" Nom |
| Approximate Cable Weight | 79.0 Lbs/1M' Nom. |
Electrical Properties:-
|
| Temperature Rating | -20°C to 75°C Dry and Wet |
| Operating Voltage | 600 V RMS Max |
| DC Resistance per Conductor @ 20°C | 2.525 Ohms/1M' Nom. |
Additional Information
Manufacturer: Coleman Cable - CCI

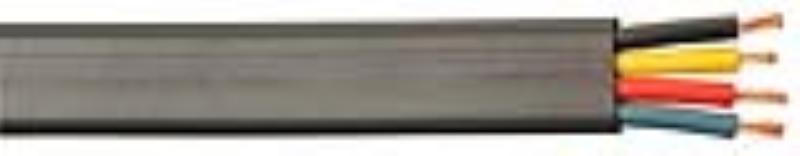

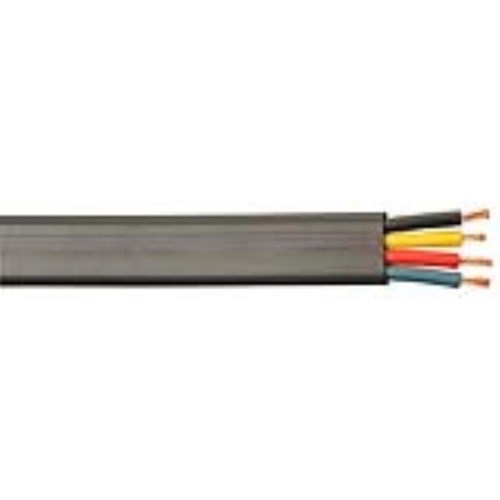

For More Information on the FLAT JACKETED PUMP,
[Click Here] to Link to Manufacturer Web Site
| SKU | Info/Size |
| 42217 | 14/2 |
| 42218 | 12/2 |
| 42219 | 10/2 |
| 42267 | 14/2 |
| 42268 | 12/2 |
| 42269 | 10/2 |
| 42317 | 14/3 |
| 42318 | 12/3 |
| 42319 | 10/3 |
| 42320 | 8/3 |
| 42321 | 6/3 |
| 42322 | 4/3 |
| 42323 | 2/3 |
| 42367 | 14/3 |
| 42368 | 12/3 |
| 42369 | 10/3 |
| 42370 | 8/3 |
| 42371 | 6/3 |
| 42372 | 4/3 |
| 42373 | 2/3 |
| 42374 | 1/0-3 |
| 42375 | 2/0-3 |
| 44207 | 14/2 |
| 44208 | 12/2 |
| 44209 | 10/2 |
| 44257 | 14/2 |
| 44258 | 12/2 |
| 44259 | 10/2 |
| 44307 | 14/3 |
| 44308 | 12/3 |
| 44309 | 10/3 |
| 44310 | 8/3 |
| 44311 | 6/3 |
| 44312 | 4/3 |
| 44313 | 2/3 |
| 44357 | 14/3 |
| 44358 | 12/3 |
| 44359 | 8/3 |
| 44360 | 8/3 |
| 44361 | 6/3 |
| 44362 | 4/3 |
| 44363 | 2/3 |
