Quick Overview
Features and Applications :-
- Manufacturered with advanced synthetic rubber compounds
- -40°C to 90°C temperature extremes
- Exceptional flexibility
- Excellent resistance to flame, deformation, ozone, oils, acids and chemicals
- Oil resistant insulation and jacket
- Abrasion resistant
- Flexible in cold temperatures
- Motor leads, portable lights, battery chargers, portable stage lights and portable machinery
- National Electric Code Article 400 applications
Interested in this item or want more information?
Hours:
Phone: 800-613-3873
Email: info@aaatool.net
Can't find what you want? Give us a call and we can help you find it.
Details
Specification :- | Part Number | AWG | No. Cond. | Stranding | Insulation Wall, Nom. | O.D., Nom. | UL 62 O.D. Range | Net Weight | Amps* | Nom. DCR ?/1M' |
| Inches | mm | Inches | mm | LB./Kft. | kg/km |
| 823225 | 18 | 2 | 16/30 | 0.030 | 0.76 | 0.285 | 7.24 | 0.280" - 0.315" | 37 | 55 | 10 | 6.59 |
Additional Information
Manufacturer: Coleman Cable - CCI

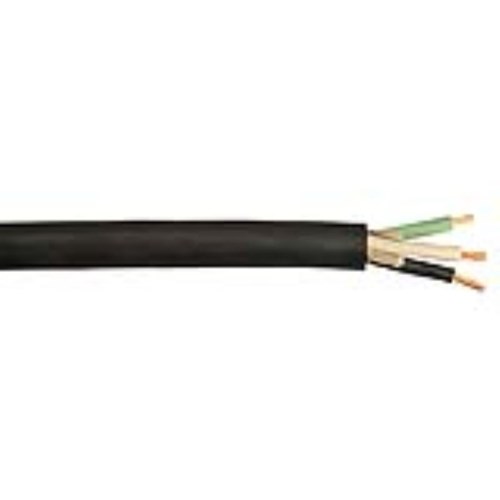

For More Information on the 300V SJOOW ROYAL CORD ROHS - Black,
[Click Here] to Link to Manufacturer Web Site
