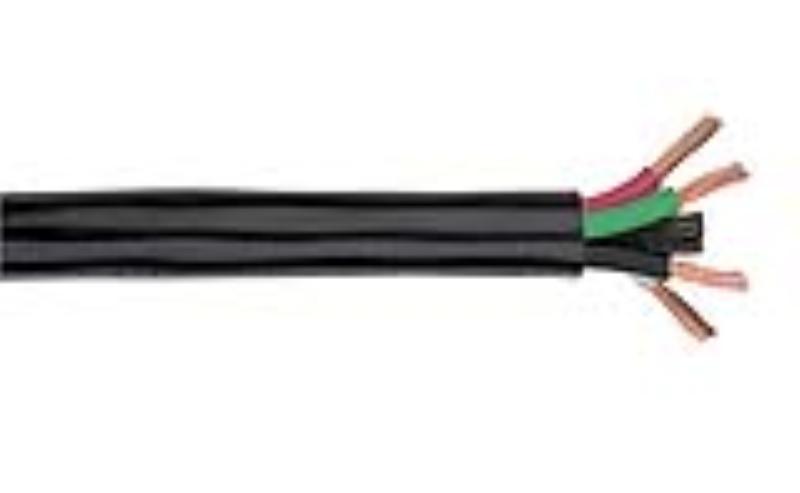

Quick Overview
Features :-
- Extremely durable and flexible TPE jacket
- Lighter in weight than other W, G or G-GC cables
- Cable is oil, sunlight and water-resistant. Single conductor features a dual extruded jacket with a mesh between the jackets for extra toughness
Interested in this item or want more information?
6am - 5pm
Phone: 800-613-3873
Email:
info@aaatool.net
Can't find what you want? Give us a call and we can help you find it.
Details
Construction Parameters:| Conductor | 8 AWG Bare Copper |
| Stranding | 7x24/30 |
| Insulation Material | TPE |
| Insulation Thickness | 0.062'' Nom. |
| Insulated Conductor Diameter | 0.287'' Nom. |
| Number of Conductors | 2 |
| Lay Length | 6.00'' Nom. |
| Filler Type | Non-Wicking Polypropylene |
| Separator/Wrap | Paper |
| Jacket Material | TPE |
| Jacket Thickness | 0.119'' Nom. |
| Overall Cable Diameter | 0.810'' Nom. |
| Approximate Cable Weight | 280.5 Lbs/1M' Nom |
| Flame Rating | UL/CSA Horizontal Flame TestMSHA |
Electrical Properties:
| Temperature Rating | -50C to 90C |
| Operating Voltage | 2000V RMS Max |
| DC Resistance per Conductor @ 20C | 0.78 Ohms/1M |
| Ampacity per NEC Table 400-5(b) | 74 amps/cond.(Assume two current carrying conductors) |
Additional Information
Manufacturer: Coleman Cable - CCI
For More Information on the PPE ROHS,
[Click Here] to Link to Manufacturer Web Site
| SKU | Info/Size |
| 030220 | 8/2 |
| 030221 | 6/2 |
| 030222 | 4/2 |
| 030224 | 6/2 |
| 030225 | 1/2 |
| 030226 | 1/0-2 |
| 030227 | 2/0-2 |
| 030228 | 3/0-2 |
| 030229 | 4/0-2 |
| 030240 | 8/3 |
| 030241 | 6/3 |
| 030242 | 4/3 |
| 030244 | 2/3 |
| 030245 | 6/3 |
| 030246 | 1/0-3 |
| 030247 | 2/0-3 |
| 030248 | 3/0-3 |
| 030249 | 4/0-3 |
| 030260 | 8/4 |
| 030261 | 6/4 |
| 030262 | 4/4 |
| 030264 | 2/4 |
| 030265 | 6/4 |
| 030266 | 1/0-4 |
| 030267 | 2/0-4 |
| 030268 | 3/0-4 |
| 030269 | 4/0-4 |
| 030280 | 8/5 |
| 030281 | 6/5 |
| 030282 | 4/5 |
| 030284 | 2/5 |
| 030285 | 1/5 |
| 030286 | 1/0-5 |
| 030287 | 2/0-5 |
| 030288 | 3/0-5 |
| 030289 | 4/0-5 |
| 30220 | 8/2 |
| 30221 | 6/2 |
| 30222 | 4/2 |
| 30224 | 6/2 |
| 30225 | 1/2 |
| 30226 | 1/0-2 |
| 30227 | 2/0-2 |
| 30228 | 3/0-2 |
| 30229 | 4/0-2 |
| 30240 | 8/3 |
| 30241 | 6/3 |
| 30242 | 4/3 |
| 30244 | 2/3 |
| 30245 | 6/3 |
| 30246 | 1/0-3 |
| 30247 | 2/0-3 |
| 30248 | 3/0-3 |
| 30249 | 4/0-3 |
| 30260 | 8/4 |
| 30261 | 6/4 |
| 30262 | 4/4 |
| 30264 | 2/4 |
| 30265 | 6/4 |
| 30266 | 1/0-4 |
| 30267 | 2/0-4 |
| 30268 | 3/0-4 |
| 30269 | 4/0-4 |
| 30280 | 8/5 |
| 30281 | 6/5 |
| 30282 | 4/5 |
| 30284 | 2/5 |
| 30285 | 1/5 |
