Red Beam Industrial Magnetic Pulley Sheave Alignment Laser

Model: 40-6200

Johnson Level & Tool Co.

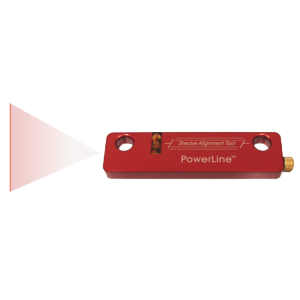

The magnetic pulley (sheave) alignment laser tool projects a plane of laser light parallel with the faces of drive and driven sheaves (or pulleys). Adjustable targets attach to sheaves, intersect the laser beam and visually show any misalignment. The Retro-Reflective film on the center line of the target reflects the laser beam and "glows" for enhanced visibility and accuracy. The reflective green film shows the laser's alignment line in "Real Time". This is called "Positive Tracking".

Quick Overview

Laser: 532nm, Class II, <1mw

Vial: 40 Arc Minute

Beam Spread: 60" @ 3'

Line Width: Approx. 1/16" @ 30"

Magnets: Nickel Plated, Rare Earth

Power: 2 AAA Alkaline Batteries (5hrs)

Targets: 3 - Retro-Reflective, Adjustable over 1"

Accuracy: .070" or 7 times more accurate than industry standards

Interested in this item or want more information?

Hours: 6am - 5pm

Phone: 800-613-3873

Email: info@aaatool.net

Can't find what you want? Give us a call and we can help you find it.

Details

Decrease Vibration on any Pulley/Sheave System - minimize belt and motor bearing wear

Compact Size - easy to use on small diameter sheaves

Faster set ups

Decrease bearing wear

Use as a laser level - check the height and flatness of motor and gear box mounting plates

Aligns belts, pulleys, sheaves, sprockets, gear trains, rollers, platforms, conveyors, and other plant equipment

Additional Information

Manufacturer: Johnson Level & Tool Co.

For More Information on the Red Beam Industrial Magnetic Pulley Sheave Alignment Laser, [Click Here] to Link to Manufacturer Web Site
