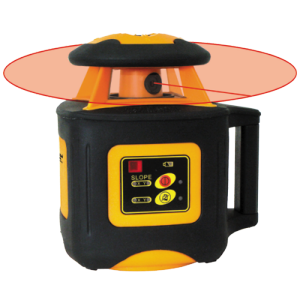

Electronic Self-Leveling Horizontal Rotary Laser Level

Model: 40-6535,40-6536

Johnson Level & Tool Co.

Johnson 40-6535 Electronic Self-Leveling Horizontal Rotary Laser Level is the most popular electronic self-leveling rotary laser due to its 2,000' diameter range and accuracy of 1/16" per 100' versus its cost. This rotary laser level is primarily an outdoor laser level and its best application is determining elevations from a known point of elevation or instrument height. It comes with a detector but you'll want to accessorize with a aluminum grade rod.

Quick Overview

Leveling Method: Automatic (Electronic)

Laser Wavelength: 635nm +/-10nm

Laser Classification: Class IIIa

Maximum Power Output: +/-5mW

Accuracy: +/-1/16"/100ft. (+/-1.5mm/30m)

Interior Range: Up to 200' diameter (60m) depending on light conditions

Exterior Range: Up to 2000' diameter (600m) with detector

Remote Range: Up to 200' diameter (60m) with remote

Slope: +/-8 degrees

Auto-Leveling Range: +/-5 degrees

Grade Setting: N/A

Power Supply: Rechargeable NiMH battery pack, or 6V adapter (included), 4 "C" alkaline batteries (not included)

Battery Life: Approximately 28 hours with rechargeable battery pack; 33 hours with alkaline batteries

Dimensions: 7.4" x 5.9" x 8.15" (188 x 150 x 207mm)

Weight: 5.51lbs. (2.1kg)

Working Temperature: 14F to 113F (-10C to +45C)

Center Screw Thread: 5/8"-11

Scanning Modes: N/A

Rotation Speeds: 700 rpm

IP Protection Class: 66

Warranty: 3 Years

Interested in this item or want more information?

Hours: 6am - 5pm

Phone: 800-613-3873

Email: info@aaatool.net

Can't find what you want? Give us a call and we can help you find it.

Details

Designed for outdoor use and simple set up

Electronic self-leveling in the horizontal plane

Electronically-controlled dual slope feature

Visual and audible alarms when beyond leveling range

Single speed rotation 700 RPM

Slope operation function allows user to perform slope 8° in both x and y axis

Height of instrument (HI) alarm function ensures product accuracy

Remote control and detector for one person operation

Height of Insturment/Tilt alarm function ensures product accuracy

Additional Information

Manufacturer: Johnson Level & Tool Co.
