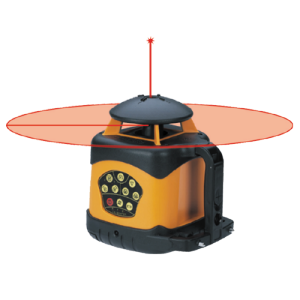

Electronic Self-Leveling Horizontal & Vertical Rotary Laser Level

Model: 40-6522,40-6523,40-6521

Johnson Level & Tool Co.

  • Johnson's 40-6522 Rotary Laser Level with Integral Vertical Mount is great for indoor and outdoor construction laser levels - carpenters, plumbers and electricians LOVE this rotary laser level for the versatility and accurate leveling it provides. Self leveling both horizontally and vertically, with a Vertical mount. Still deciding?

    • Quick Overview

    • Leveling Method: Automatic (Electronic)

    • Laser Wavelength: 635nm +/-10nm (Red)

    • Laser Classification: Class IIIa

    • Maximum Power Output: <=5mW

    • Accuracy: +/-1/16"/100ft. (+/-1.5mm/30m)

    • Interior Range: Up to 200` diameter (60m) depending on light conditions

    • Exterior Range: Up to 2000` diameter (600m) with detector

    • Remote Range: Up to 200` diameter (60m)

    • Slope: +/-8 degrees

    • Auto-Leveling Range: +/-5 degrees

    • Grade Setting: N/A

    • Power Supply: Rechargeable NiMH battery pack, or 6V adapter (included), 4 "C" alkaline batteries (not included)

    • Battery Life: Approximately 15 hours with rechargeable battery pack; 20 hours with alkaline batteries

    • Dimensions: 5.75" x 7.75" x 7.625" (146 x 197 x 194mm)

    • Weight: 4.4 lbs. (2kg)

    • Working Temperature: 14F to 113F (-10C to +45C)

    • Center Screw Thread: 5/8"-11

    • Scanning Modes: 0, 30, 60 degrees

    • Rotation Speeds: 120, 500 rpm

    • IP Protection Class: 66

    • Warranty: 3 Years
    Interested in this item or want more information?

    Hours:

    Phone: 800-613-3873

    Email: info@aaatool.net

    Can't find what you want? Give us a call and we can help you find it.

    Details

  • Designed for indoor and outdoor applications

  • Electronically-controlled dual slope feature

  • Electronic self-leveling horizontally and vertically

  • Laser beam modes include dot, two adjustable line lengths and two rotational speeds

  • Two rotational speeds: 120 and 500 RPM

  • Visual and audible alarms when beyond leveling range

  • Height of Instrument/Tilt alarm function ensures product accuracy

    • Additional Information

    Manufacturer: Johnson Level & Tool Co.
    For More Information on the Electronic Self-Leveling Horizontal & Vertical Rotary Laser Level, [Click Here] to Link to Manufacturer Web Site
