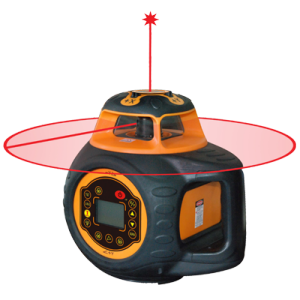

Electronic Self-Leveling Dual Grade Horizontal & Vertical Rotary Laser Kit

Quick Overview

• Leveling Method: Automatic (Electronic)


• Laser Wavelength: 635nm±10nm (Red)


• Laser Classification: Class IIIa


• Maximum Power Output: =5mw


• Accuracy: ±1/16"/100 ft. (±1.5mm/30m)


• Interior Range: Up to 200 ft. (60m) diameter depending upon light conditions


• Exterior Range: Up to 2000 ft. (600m) diameter with detector


• Remote Range: Up to 200 ft. (60m)


• Auto-Leveling Range: ±8°


• Grade Setting: X-Axis -10% - +10%; Y-Axis -10% - +10%


• Power Supply: Li-ion rechargeable battery pack or Li-ion battery adapter (included), 3 "D" alkaline batteries


• Battery Life: Approximately 40 hours with rechargeable battery pack; 100 hours with 3 "D" alkaline batteries


• Dimensions: 9.25" x 7.08" x 9.76" (235 x 180 x 248mm)


• Weight: 7.275 lbs. (3.3Kg)


• Working Temperature: 14°F to 113°F (-10°C to 45°C)


• Center Screw Thread: 5/8" – 11


• Rotation Speeds: 300, 600, 1100 RPM


• IP Protection Class: 66


• Warranty: 3 years with store receipt
