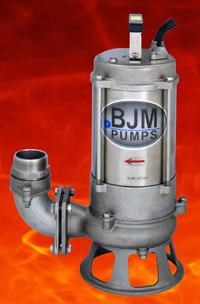

SKXF Shredder Pumps SKX1500CSSF-230

• Max. Flow: Gpm: 185
• Max. Head: Ft: 46'
• Pump Type: Non Clog Shredder
• Discharge Size: 3" NPT-M
• Max. Submerged Depth: 65'
• Min. Submerged Depth: 14"
• Shipping Weight:Lbs: 104

• Motor Casing: 316SS
• Pump Volute: 316SS
• Strainer / Stand: 316SS
• Lip Seals & O-Rings: FKM
• Rotor Shaft: 316SS
• External Hardware: 316SS
• Qty. Oil In Seal Chamber: 10.1 U.S. FL. OZ., SHELL FM 32, NSF APPROVED
• Qty. Oil In Motor Stator: OIL-FILLED W/ SHELL FM 32, NSF APPROVED

• Motor Rating: Hp: 2
• Motor Rpm: 3450
• Motor Insulation Class: F
• Motor Service Factor: 1.1
• Voltage: 230, 1PH-60HZ
• Current F.L.A.: 14
• Motor Protection: Thermal Sensor Switches Embedded in Each Winding Phase
• Power Cord: Gage; Length: A.W.G. 14/4; 33', high temp. rated
• Maximum Liquid Temperature: 200° F
• Seal Minder: Standard

Shredder Pumps
316 Cast Stainless Steel Pumps with Shredder Action Impellers for Municipal, Industrial and Agricultural Waste-Water.

Side discharge and non-clog single vane or double vane impellers for the passing of solids while delivering high volume of liquids.

The Shredder (SKXF) pumps leave solids slightly larger than if passed through a grinder pump. The shredding action is caused by using a cutting impeller with a Tungsten Carbide Tip, against a "spiral" shaped diffuser plate.

All wear and "wet" parts such as impeller, wear-plate, oil housing, pump-housing and inner pump top are made of Cast 316 stainless material. The elastomers such as o-rings, lip seals and gaskets are made of FMK.

• All parts exposed to pumped liquids are made of 316 Stainless Steel.
• Elastomers are made of FMK.
• Longer Power Cord – Standard 33ft. power cord.
• Three Seal Motor Protection - Motor is protected by double mechanical seals. Lower seal made of silicon carbide/silicon carbide and upper seal is made of carbon/ceramic. An additional lip seal has been installed above the impeller, to help prevent abrasives such as dirt, silt or sand, from entering into the seal chamber.
• More Motor Protection – Winding protection and (NEMA) Class R motor insulation with a thermal cut out switch that will allow the stator to have a winding temperature of up to 300 degrees F (150C), superior to pumps with Class A and B insulation.
• Each pump is tested at factory, both for performance as well as safety. Level controls and level control systems are available.
