Details
GENERAL DATA
Max. Flow: Gpm: 51
Max. Head: Ft: 19'
Pump Type: Non Clog Vortex
Discharge Size: 2" NPT-M (45° elbow)
Max. Submerged Depth: 65'
Min. Submerged Depth: 9.5"
Shipping Weight:Lbs: 36
CONSTRUCTION/MATERIAL DATA
Motor Casing: 304SS
Pump Volute: Cast Iron
Lip Seals & O-Rings: Buna - N
Rotor Shaft: 304 SS
External Hardware: 304 SS
Qty. Oil In Seal Chamber: 5.1 U.S. FL. OZ.
ELECTRICAL/MOTOR DATA
Motor Rating: Hp: 0.33
Motor Rpm: 3450
Motor Insulation Class: B
Motor Service Factor: 1
Voltage: 115/230, 1ph-60 Hz
Current F.L.A.: 4
Motor Protection: Thermal Breaker
Power Cord: Gage; Length: A.W.G. 16/3, 33', STOW
Maximum Liquid Temperature: 104° F
Seal Minder: Not Available

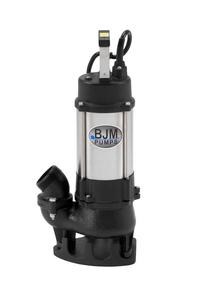

Non-Clog Electric Submersible Pumps for Sludge, Sewage, Trash & Industrial Waste
The SV-pumps are equipped with Vortex impellers, undoubtedly the best non-clog impellers ever invented for the handling of mud, raw sewage, viscous liquids, rags, wood chips and other solids. They pass solid up to 90% of pump outlet diameter.
- Longer Power Cord – Standard 33ft. power cord on pumps ½ HP and below and 50ft. on pumps 1HP and above.
- 304SS Motor Housing – Superior abrasion resistance will not wear out like aluminum motor housings when pumping sandy water.
- Three Seal Motor Protection - Motor is protected by double mechanical seals. Lower seal made of silicon carbide/silicon carbide and upper seal is made of carbon/ceramic. An additional lip seal has been installed above the impeller, to help prevent abrasives such as dirt, silt or sand, from entering into the seal chamber.
- More Motor Protection – Winding protection and (NEMA) Class F motor insulation allows motor temperature to raise to 230°F, superior to pumps with Class A and B insulation. Automatic switch turns pump motor off if temperature and/or amp draw raises too high. When the motor cools the switch will automatically reset and the pump will turn back on.
- Tough Pump Construction – Hardened cast iron stands up to rough handling and pumping sandy water unlike pumps with soft resin impellers or plastic exterior components.
Additional Information
Manufacturer: BJM Pumps, LLC
For More Information on the SV Vortex Impeller Pumps SV250-115,
