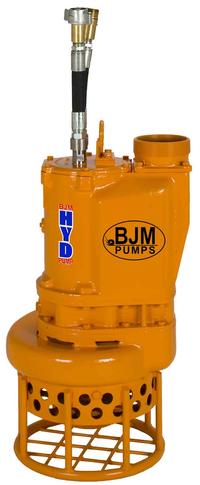

KZN-HYD Series is the hydraulic version of the very popular KZN Series Heavy Duty Submersible Slurry Pump with agitator. Ideal for applications were electric power is not available, or variable speed is needed for the application. It is the choice of industries that face the most difficult pumping:
Interested in this item or want more information?
Hours:
Phone: 800-613-3873
Email: info@aaatool.net
Can't find what you want? Give us a call and we can help you find it.
Details
GENERAL DATA
Max. Flow: Gpm: 1240
Max. Head: Ft: 134'
Pump Type: Slurry, Hydraulic
Strainer Opening: 1.375"
Discharge Size: 6" NPT-M
Shipping Weight:Lbs: 495
CONSTRUCTION/MATERIAL DATA
Motor Casing: Cast Iron
Pump Volute: Ductile Iron
Impeller - Multi Vane: Hi-Chrome
Lip Seals & O-Rings: Buna - N
Rotor Shaft: 304 SS
Qty. Oil In Seal Chamber: 125 U.S. FL. OZ.
HYDRAULIC DATA
Houseports: 1" NPT-F
Hydraulic Oil: Max. 2800 PSI
Hydraulicinputflow: Max. 28 GPM
Hydraulicoperatingpressure: 214-320 s.s.u. @ 100° F
EVERY KZN-HYD slurry pump is constructed with the following abrasive resistant chrome iron components;
- Agitator - to fluidize settled solids into a slurry.
- Wear plate - replaceable hardened surface on the suction side where erosion would cause a loss of pump performance.
- Semi- open Impeller - to handle abrasive solid concentrations as high as 70% by weight.
High-Chrome Agitator helps keep solids suspended in liquid and helps prevent pump from clogging.
Additional Information
Manufacturer: BJM Pumps, LLC
For More Information on the KZN-HYD Heavy Duty Slurry Pumps KZN-HYD6,
[Click Here] to Link to Manufacturer Web Site
