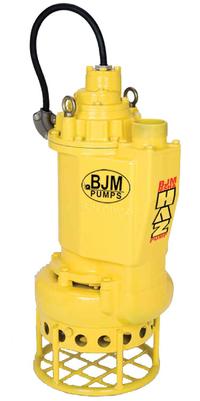

The HAZ pump is the first permissible slurry pump with an agitator. Designed to resist abrasive wear that causes loss of pump performance.
Interested in this item or want more information?
Hours:
Phone: 800-613-3873
Email: info@aaatool.net
Can't find what you want? Give us a call and we can help you find it.
Details
GENERAL DATA
Max. Flow: Gpm: 594
Max. Head: Ft: 57"
Pump Type: SLURRY HANDLING
Strainer Opening: 1.375"
Discharge Size: 4" NPT-MALE
Shipping Weight:Lbs: 410
CONSTRUCTION/MATERIAL DATA
Motor Casing: CAST IRON
Pump Volute: DUCTILE IRON
Impeller-Multi Vane: HIGH CHROME
Lip Seals &0-Rings: BUNA-N
Rotor Shaft: 410SS
Oty. Oil In Seal Chamber: 49 U.S.FL OZ.
ELECTRICAL/MOTOR DATA
Motor Rating: Hp: 7.5
Motor Rpm: 1750
Motor Insulation Cuss: H
Motor Service Factor: 1.15
Voltage: 230/460, 3PH-60HZ
Current F.La: 9.5
Motor Protection: Thermal & Amp Overload
Power Cord: Gage; Length: A.W.G. 10/5; 50'; SOOW, MSHA LISTED
Maximum Liquid Temperature: 104°F
The HAZ pump is the first permissible slurry pump with an agitator. Designed to resist abrasive wear that causes loss of pump performance. Less down time, less maintenence and less repairs. Outlasts rubber lined and regular cast iron pumps.
- Permissible heavy duty hard metal agitator submersible slurry dewatering pump
- Designed and constructed for abrasive coal slurries
- High-Chrome iron impeller, wear plate and agitator
- Hardened ductile iron volute
- Built-in agitator mixes settled solids with pump water to restore sump or basin volume.
Additional Information
Manufacturer: BJM Pumps, LLC
