Details
The J-Series electric submersible pumps offer top performance and high quality for a very modest investment. The pumps are designed for long life and trouble free performance.
- TWO PUMPS IN ONE
Most J-Series pumps can quickly be converted from High Volume to High Head (or vice-versa) by merely changing the impeller and the suction plate. For High Head JH-Series – Click here. Other brands often require major changes to achieve different heads or volumes.
- Motor casings, hardware and impeller shafts are made from 304 stainless steel, with all other exposed parts made of cast iron
- Pumps 1/2HP and above, feature double mechanical seals which work in a separate oil chamber.
- Oil seal ring(s) are installed above the impeller to help keep impurities and abrasives away from the mechanical seals.
- All pumps are equipped with an overload protection which guards against low and high amperage as well as excessive temperature
- SLIDE RAIL SYSTEMS
The J55 and J75 can also be mounted on the BJM slide rail system.
GENERAL DATA
Max. Flow: Gpm: 158
Max. Head: Ft: 60'
Pump Type: Sump, Side Discharge
Strainer Opening: 0.5625-x 0.25" Slot
Discharge Size: 3" NPT-M
Max. Submerged Depth: 65'
Min. Submerged Depth: 10.5"
Shipping Weightibs: 84
CONSTRUCTION/MATERIAL DATA
Motor Casing: 304SS
Pump Volute: Cast Iron
Impeller-Multi Vane: Cast Iron
Lip Seals &0-Rings: Buna-N
Rotor Shaft: 304 SS
External Hardware: 304 SS
Oty. Oil In Seal Chamber: 9 U.S. FL. OZ.
Oty. Oil In Motor Stator: No oil in motor stator (After sen* 43085) 13.5 U.S. FL. OZ. (Before sen* 43085)
ELECTRICAL/MOTOR DATA
Motor Rating: Hp: 2
Motor Rpm: 3450
Motor Insulation Class: F
Motor Service Factor: 1.1
Voltage: 230,1ph-60Hz
Current F.La: 14
Motor Protection: Thermal & Amp Overload
Power Cord: Gage; Length: A.W.G. 14/3, 50', STOW
Maximum Liquid Temperature: 104° F
Seal Minder: Optional
Additional Information
Manufacturer: BJM Pumps, LLC

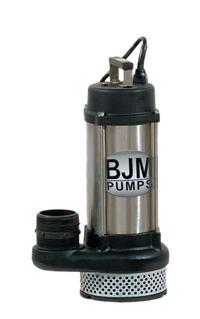

For More Information on the J1500-230 Side Discharge Sump Pumps,
