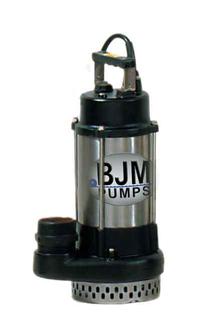

J400-115 Side Discharge Sump Pumps

J400-115

BJM Pumps, LLC

The J-Series electric submersible pumps offer top performance and high quality for a very modest investment. The pumps are designed for long life and trouble free performance.

  • TWO PUMPS IN ONE Most J-Series pumps can quickly be converted from High Volume to High Head (or vice-versa) by merely changing the impeller and the suction plate. For High Head JH-Series – Click here. Other brands often require major changes to achieve different heads or volumes.
  • Motor casings, hardware and impeller shafts are made from 304 stainless steel, with all other exposed parts made of cast iron
  • Pumps 1/2HP and above, feature double mechanical seals which work in a separate oil chamber.
  • Oil seal ring(s) are installed above the impeller to help keep impurities and abrasives away from the mechanical seals.
  • All pumps are equipped with an overload protection which guards against low and high amperage as well as excessive temperature
  • SLIDE RAIL SYSTEMS
  • The J55 and J75 can also be mounted on the BJM slide rail system.

    • Quick Overview

      Recommended accessories

      Piggy Back type float switch w/ plug:
      • 30’ Cable = BJM Item # 201050
      • 50’ Cable = BJM Item # 201060

      Side Mount Vertical Rod Type Float Switch:
      • 30’ Cable = BJM Item # 201051

      Built-In Switch (Permanently attached to pump):
      • 33’ Cable = BJM Item # 201724
      • 50’ Cable = BJM Item # 201725

      Manual Starter Box:
      • Manual On/Off starter box J400SS-115 = BJM Item # 201109

      Auto Starter Box:
      • Auto On/Off starter box for J400SS-115 = BJM Item # 201110

      Simplex Control Panel - (3 mechanical float switches):
      • Single Phase Control Panel for J400SS-115 = BJM Item # 201069

      Duplex Control Panel - (4 mechanical float switches):
      • Single Phase Control Panel for J400SS-115 = BJM Item # 201074

    Interested in this item or want more information?

    Hours:

    Phone: 800-613-3873

    Email: info@aaatool.net

    Can't find what you want? Give us a call and we can help you find it.

    Details

    GENERAL DATA
  • Max. Flow: Gpm : 66
  • Max. Head: Ft : 35'
  • Pump Type : Sump, Side Discharge
  • Strainer Opening : 0.375" x 0.1875" Slot
  • Discharge Size : 2" NPT-M
  • Max. Submerged Depth : 65'
  • Min. Submerged Depth : 8.5"
  • Shipping Weight:Lbs : 38

    • CONSTRUCTION/MATERIAL DATA
  • Motor Casing : 304SS
  • Pump Volute : Cast Iron
  • Impeller - Multi Vane : Cast Iron
  • Lip Seals & O-Rings : Buna - N
  • Rotor Shaft : 304 SS
  • External Hardware : 304 SS
  • Qty. Oil In Seal Chamber : 5.1 U.S. FL. OZ.
  • Qty. Oil In Motor Stator : None

    • ELECTRICAL/MOTOR DATA
  • Motor Rating: Hp : 0.5
  • Motor Rpm : 3450
  • Motor Insulation Class : F
  • Motor Service Factor : 1.1
  • Voltage : 115/230, 1ph-60 Hz
  • Current F.L.A. : 7.6
  • Motor Protection : Thermal Breaker
  • Power Cord: Gage; Length : A.W.G. 16/3, 33', STOW
  • Maximum Liquid Temperature : 104° F
  • Seal Minder : Not Available

    • Additional Information

    Manufacturer: BJM Pumps, LLC
