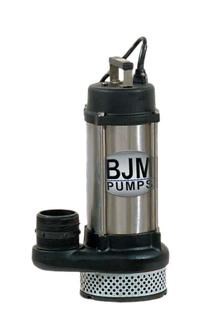

The JH-Series electric submersible pumps offer top performance and high quality for a very modest investment. The pumps are designed for long life and trouble free performance.
TWO PUMPS IN ONE Most J-Series pumps can quickly be converted from High Volume to High Head (or vice-versa) by merely changing the impeller and the suction plate. For High Volume J-Series – Click here. Other brands often require major changes to achieve different heads or volumes.
Motor casings, hardware and impeller shafts are made from 304 stainless steel, with all other exposed parts made of cast iron.
Pumps 1/2HP and above, feature double mechanical seals which work in a separate oil chamber
Oil seal ring(s) are installed above the impeller to help keep impurities and abrasives away from the mechanical seals.
All pumps are equipped with an overload protection which guards against low and high amperage as well as excessive temperature.
SLIDE RAIL SYSTEMS The J55H and J75H can also be mounted on the BJM slide rail system.
Recommended accessories
Piggy Back type float switch w/ plug:
- 50' cable = BJM Item # 201063
Manual Starter Box:
- Manual On/Off starter box J1500H-230 = BJM Item # 201115
Auto Starter Box:
- Auto On/Off starter box for J1500H-230 = BJM Item # 201116
Simplex Control Panel - (3 mechanical float switches):
- Single Phase control Panel for J1500H-230 = BJM Item # 201067
Duplex Control Panel - (4 mechanical float switches):
- Single Phase control Panel for J1500H-230 = BJM Item # 201072
Interested in this item or want more information?
Hours:
Phone: 800-613-3873
Email: info@aaatool.net
Can't find what you want? Give us a call and we can help you find it.
Details
GENERAL DATA
Max. Flow: Gpm: 105
Max. Head: Ft: 75"
Pump Type: Sump, Side Discharge
Strainer Opening: 0.5625-x 0.25" Slot
Discharge Size: 2" NPT-M
Max. Submerged Depth: 200'
Min. Submerged Depth: 10.5"
Shipping Weightibs: 84
CONSTRUCTION/MATERIAL DATA
MOTOR CASING: 304SS
PUMP VOLUTE: Cast Iron
IMPELLER - MULTI VANE: Cast Iron
LIP SEALS &0-RINGS: Buna-N
ROTOR SHAFT: 304 SS
EXTERNAL HARDWARE: 304 SS
OTY. OIL IN SEAL CHAMBER: 9 U.S. FL. OZ.
OTY. OIL IN MOTOR STATOR: No oil in motor stator (After sen* 43085) 13.5 U.S. FL. OZ. (Before sen* 43085)
ELECTRICAL/MOTOR DATA
Motor Rating: Hp: 2
Motor Rpm: 3450
Motor Insulation Class: F
Motor Service Factor: 1.1
Voltage: 230,1ph-60Hz
Current F.La: 14
Motor Protection: Thermal & Amp Overload
Power Cord: Gage; Length: A.W.G. 14/3, 50', STOW
Maximum Liquid Temperature: 104BF
Seal Minder: Optional
Additional Information
Manufacturer: BJM Pumps, LLC
For More Information on the J1500H-230 High Head Side Discharge Sump Pumps,
